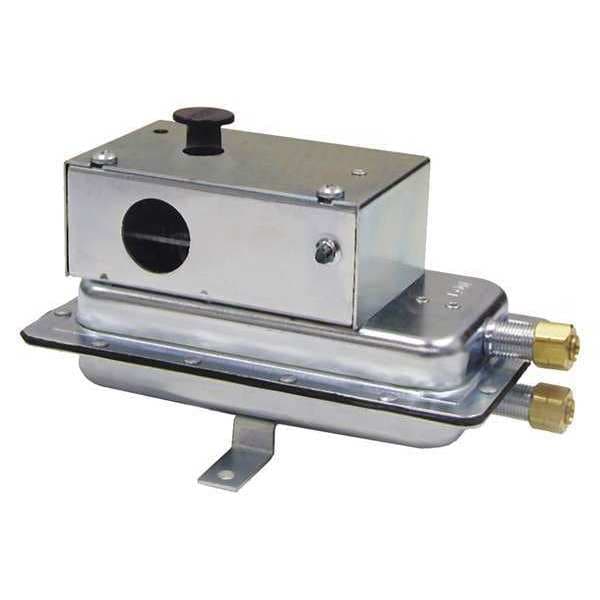

AirSwitch .40-12", WC, SPST, AFS-460-136
| Item | Air Pressure Switch |
|---|---|
| Application | Energy Management, HVAC |
| Electrical Rating | 1/2 A @ 120V DC, 1/2 hp @240V DC, 1/4 hp @ 120V AC, 1/4 A @ 240V DC, 15 A @ 120 to 480V AC |
| Minimum Pressure Setting | 0.4 in wc |
| Number of Switches | 1 |
| Reset Type | Manual Reset |
| Minimum Operating Temperature | -40 deg F |
| Contact Form | DPDT |
| Product Type | Air Pressure Switch |
| Pressure Type | Differential, Negative, Positive |
| Overall Depth | 3-13/16 in |
| Overall Width | 3-1/4 in |
| Mounting Hole Center to Center Distance | 3-7/8 in |
| Sample Line Connection Size | 1/4 in |
| Standards | CSA Certified, CSA Certified LR18754, cUL Listed, UL MH6213, UL Listed |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Maximum Pressure Rating | 0.5 psi |
| Pressure Setpoint Type | Adjustable |
| Maximum Operating Temperature | 180 deg F |
| Mounting Orientation | Vertical |
| Input Voltage | 480V AC |
| Maximum Differential Pressure Setting | 0.8 in wc |
| Mounting Hole Diameter | 3/16 in |
| Housing Type | Conduit Box |
| Sample Line Connector Type | Integral Compression |
| Maximum Pressure Setting | 12 in wc |
| Electrical Connection Type | Hardwired |
| Overall Height | 6-1/4 in |
| Housing Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
