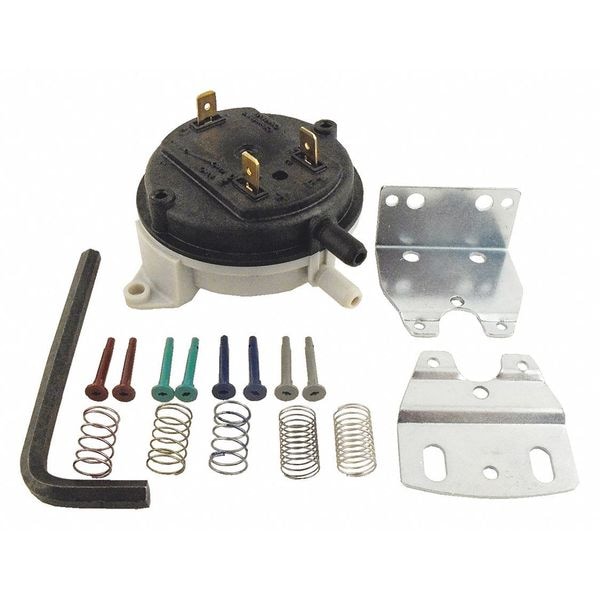

Pressure Sensing Switch, 1-1/2" D
| Depth (In.) | 1-1/2 |
|---|---|
| Mounting Holes O.C. (In.) | 3-5/32 |
| Features | Normally Closed Terminal, Normally Open Terminal and Common Terminal |
| Operating Temp. Range (F) | -40 to 190 |
| Sample Line Connector | Push-On |
| Pressure Setting Range (In. WC) | 0.1 to 10 |
| Switch Type | SPDT |
| Application | Differential Pressure Detection |
| Height (In.) | 3-1/4 |
| Width (In.) | 3-1/4 |
| Agency Compliance | CE, CSA, CUL, UL |
| Mounting Location | Vertical, Horizontal |
| Item | Air Pressure Switch |
| Function | Sense Positive, Negative or Differential Air Pressure |
| Electrical Rating | 1/10 hp @ 120 to 277V AC, 125 VA Pilot Duty @ 120V AC, 28 VA Pilot Duty @ 24V AC |
| Type | HVAC/General Purpose |
| Pressure Type | Differential, Negative |
| Product Type | Air Pressure Switch |
| Housing Material | Polyethelene |
| Sample Line Connector Type | Push-On |
| Minimum Operating Temperature | -40 deg F |
| Overall Height | 3-1/4 in |
| Housing Type | Standard Housing |
| Overall Width | 3-1/4 in |
| Standards | CE Certified, CSA Certified, cUL Listed, UL Listed |
| Electrical Connection Type | Plug-In |
| Mounting Hole Center to Center Distance | 3-3/16 in |
| Overall Depth | 1-1/2 in |
| Number of Switches | Not Applicable |
| Minimum Pressure Setting | 0.1 in wc |
| Sample Line Connection Size | 1/4 in |
| Maximum Pressure Setting | 10 in wc |
| Maximum Differential Pressure Setting | Not Applicable |
| Input Voltage | 120V AC |
| Mounting Orientation | Vertical, Horizontal |
| Maximum Operating Temperature | 190 deg F |
| Reset Type | Automatic Reset |
| Minimum Differential Pressure Setting | Not Applicable |
| Contact Form | SPDT |
| Maximum Pressure Rating | 14 in wc |
| Pressure Setpoint Type | Adjustable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
