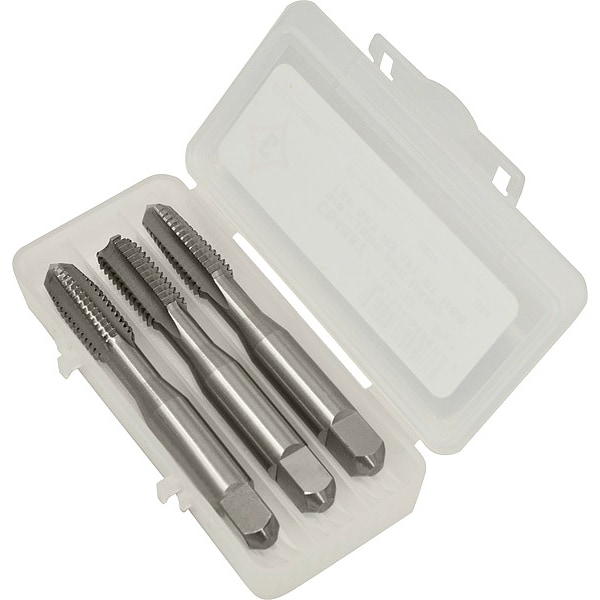

Hand Tap Sets, Bright (Uncoated), RH
| Item | Hand Tap Sets |
|---|---|
| Overall Length | 2.38 in |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Tap Thread Size | #10-32 |
| Thread Direction | Right Hand |
| Number of Flutes | 2 |
| Shank Dia. | 0.194 in |
| Number of Pieces | 3 |
| Tap Style | Straight Flute |
| Features | General Purpose, Neck Down Style |
| Tap Chamfer | Bottoming, Plug, Taper |
| Thread Length | 1/2 in |
| Standards | USCTI Table 302 |
| List Number | 1004 |
| Includes | One Each Taper, Plug, and Bottoming |
| Case Type | UniBox |
| Tap Shank Standard | USCTI Table 302 |
| Measurement System | Decimal Inch |
| Thread Standard | UNF |
| Tap Type | Hand |
| Thread Limit | H3 |
| Threads per Inch | 32 |
| Tap Length Standard | USCTI Table 302 |
| Primary Material Application | Ferrous Metals, Non-Ferrous Metals |
| 75% Thread Drill Size | #21 |
| Square Size | 0.2500 x 0.1520 in |
| Class of Fit | 2 B |
| Thread Sizes Included | #10-32 |
| Number Of Taps | 3 |
| Dimensions Standard | UNF |
| Package Quantity | 1 |
