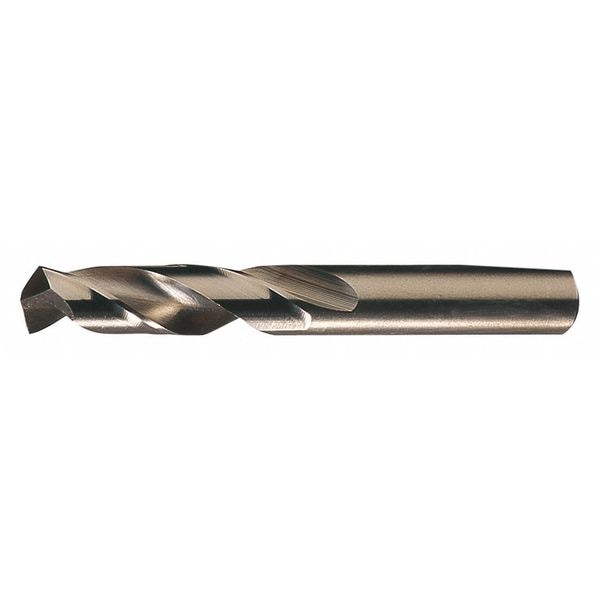

Screw Machine Drill Bit, #11 Size, 135 Degrees Point Angle, Cobalt, Straw/Bronze Finish
| Drill Bit Grouping | Drill Bit |
|---|---|
| Item | Screw Machine Drill Bit |
| Drill Bit Dimension Type | Wire |
| Drill Bit Size | #11 |
| Decimal Equivalent | 0.191 |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | Cobalt |
| Drill Bit Finish | Straw, Bronze |
| Shank Type | Straight |
| Flute Type | Spiral |
| Shank Dia. | 3/16 in |
| Overall Length | 2-1/4 in |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 1-3/16 in |
| Maximum Drilling Depth | 1-3/16 in |
| Number of Pieces | 0 |
| Bit Dia. | #11 |
| Shank Size | 0.1910" |
| Point Type | Split |
| List Number | 2133 |
| Sizes Included | #11 |
| Coolant Through | No |
| Application | For Drilling Carbon Steel, Alloy Steel, Cast Iron and Stainless Steel |
| Standards | ASME B94.11M-1993 |
| Grade | Heavy Duty |
| Drilling Length | 1.188 in |
| Shank Shape | Straight |
| Depth x Dia. Ratio | 4 xD |
| Depth:Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Series | 2133 |
| Spiral Direction | Right Hand |
| Finish - Machining | Straw, Bronze |
| Primary Material Application ISO Code | P, K, M |
| Drill Point Length | 0.0396 in |
| Drill Length Class | Screw Machine Length |
| Measurement System | Wire |
| Helix Angle | 28 deg |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Material Grade - Machining | M42 |
| Shank Length | 1-1/16 in |
| Drill Bit Point Type | Split Point |
| Material - Machining | Cobalt |
| Shank Type - Machining | Straight |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Package Quantity | 1 |
