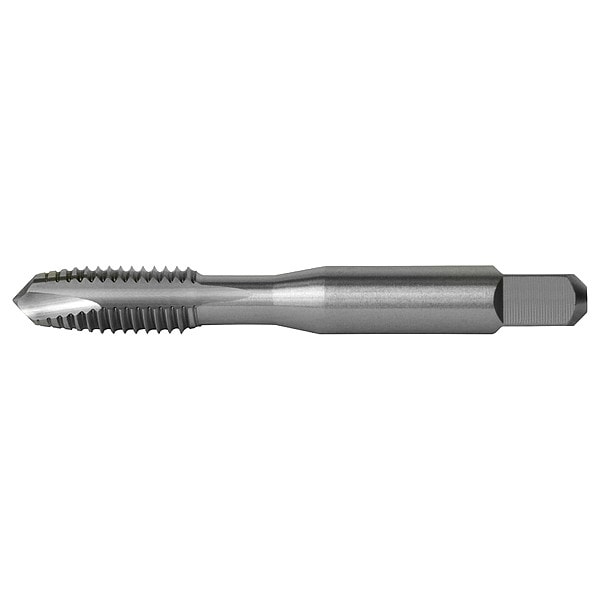

Spiral Point Tap, 1/4"-20, Plug, 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Tap Thread Size | 1/4"-20 |
| Tap Chamfer | Plug |
| Number of Flutes | 3 |
| Overall Length | 2-1/2 in |
| Thread Standard | UNC |
| Standards | USCTI Table 302A |
| Extended Neck | Yes |
| Tap Length Standard | USCTI |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| Primary Material Application | Non-Ferrous, Steel |
| Shank Dia. | 0.255 in |
| Threads per Inch | 20 |
| Primary Material Application ISO Code | P, N |
| Measurement System | Decimal Inch |
| Thread Length | 0.63 in |
| Tap Material | High Speed Steel |
| Shank Type - Machining | Straight with Square |
| Thread Limit | H13 |
| Tap Shank Standard | USCTI |
| Thread Size | 1/4"-20 |
| Drill Bit Size | 1/4 in |
| Spiral Direction | Right Hand |
| Class of Fit | 1B |
| Features | General Purpose |
| Square Size | 0.3125 x 0.1910 in |
| 75% Thread Drill Size | #7 |
| Package Quantity | 1 |
