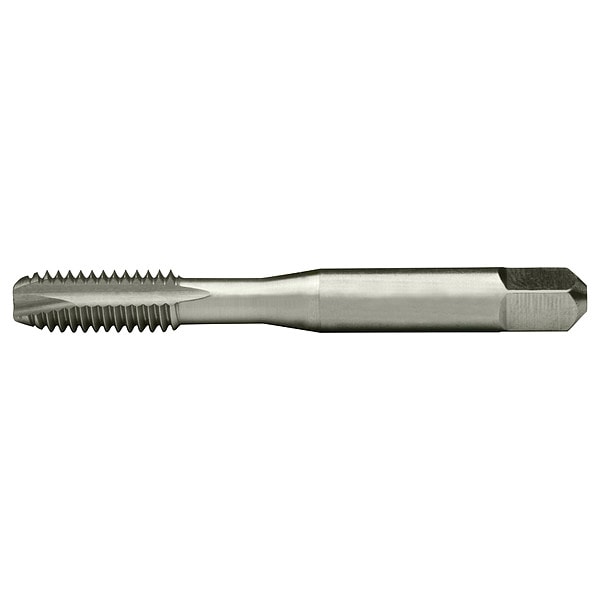

Spiral Point Tap, M10-1.50, Bottoming, 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Tap Thread Size | M10-1.50 |
| Tap Chamfer | Bottoming |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Thread Pitch | 1.50 mm |
| Thread Length | 31.75 mm |
| Thread Size | M10-1.50 |
| Shank Dia. | 9.68 mm |
| Thread Limit | D6 |
| Tap Material | High Speed Steel |
| Measurement System | Metric |
| Tap Finish | Bright |
| Thread Standard | Metric |
| Overall Length | 74.61 mm |
| Drill Bit Size | 10 mm |
| Standards | USCTI Table 302A |
| Class of Fit | 2B |
| Tap Shank Standard | USCTI |
| Features | General Purpose |
| Square Size | 11.11 x 7.26 mm |
| Spiral Direction | Right Hand |
| Tap Length Standard | USCTI |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | P, N |
| 75% Thread Drill Size | 8.5 mm |
| Primary Material Application | Non-Ferrous, Steel |
| Package Quantity | 1 |
