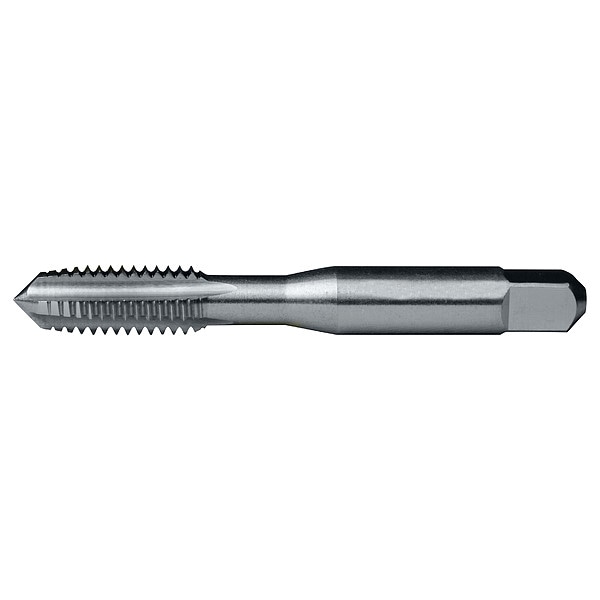

Straight Hand Tap, Bright (Uncoated), RH
| Item | Hand Tap |
|---|---|
| Number of Flutes | 4 |
| Tap Style | Straight Flute |
| Tap Material | High Speed Steel |
| Tap Finish | Bright |
| Overall Length | 2-1/2 in |
| Standards | USCTI Table 302A |
| Thread Length | 0.63 in |
| Tap Chamfer | Taper |
| Thread Direction | Right Hand |
| Shank Dia. | 0.255 in |
| Primary Material Application | Cast Iron, Aluminum, Stainless Steel, Steel |
| Threads per Inch | 20 |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | K, M, P, N |
| Features | General Purpose |
| Measurement System | Decimal Inch |
| Thread Size | 1/4-20 |
| Drill Bit Size | 1/4 in |
| Thread Limit | H5 |
| Class of Fit | 2 B |
| Extended Neck | Yes |
| Tap Length Standard | USCTI |
| Thread Standard | UNC |
| Tap Shank Standard | USCTI |
| Shank Length | 5/16 in |
| Spiral Direction | Right Hand |
| 75% Thread Drill Size | #7 |
| Square Size | 0.3125 x 0.1910 in |
| Package Quantity | 1 |
