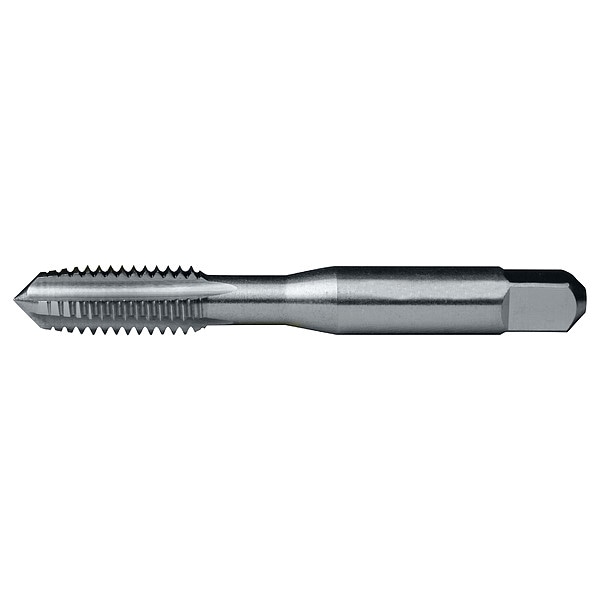

Straight Hand Tap, Bright (Uncoated), RH
| Item | Hand Tap |
|---|---|
| Number of Flutes | 2 |
| Tap Style | Straight Flute |
| Tap Material | High Speed Steel |
| Tap Finish | Bright |
| Overall Length | 2.72 in |
| Thread Length | 0.69 in |
| Standards | USCTI Table 302A |
| Tap Chamfer | Taper |
| Shank Dia. | 0.318 in |
| Thread Direction | Right Hand |
| Threads per Inch | 18 |
| Features | General Purpose |
| Primary Material Application | Cast Iron, Aluminum, Stainless Steel, Steel |
| Measurement System | Decimal Inch |
| Thread Size | 5/16-18 |
| Primary Material Application ISO Code | K, M, P, N |
| Tap Shank Standard | USCTI |
| Extended Neck | Yes |
| Drill Bit Size | 5/16 in |
| Class of Fit | 2 B |
| Tap Length Standard | USCTI |
| Thread Limit | H3 |
| Shank Type - Machining | Straight |
| Thread Standard | UNC |
| Spiral Direction | Right Hand |
| Shank Length | 3/8 in |
| 75% Thread Drill Size | F |
| Square Size | 0.3750 x 0.2380 in |
| Package Quantity | 1 |
