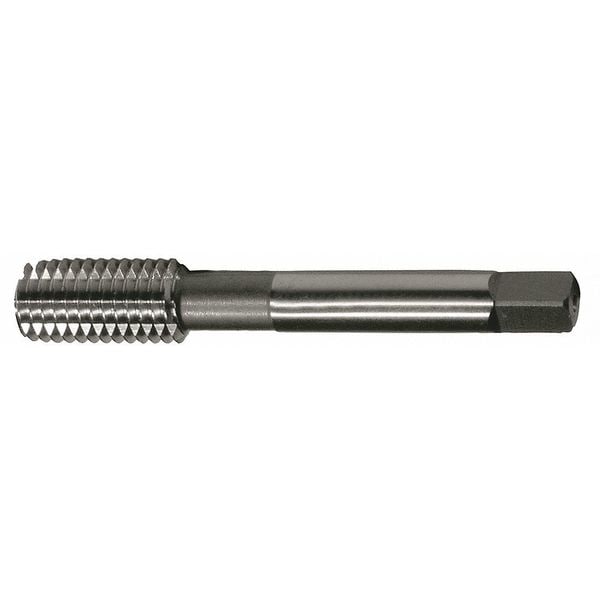

Thread Forming Tap, #10-32, Bottoming, Bright, 0 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | #10-32 |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Number of Flutes | 0 |
| List Number | 1092 |
| Thread Length | 7/8 in |
| Standards | USCTI Table 302A |
| Overall Length | 2-3/8 in |
| Tap Thread Type | UNF |
| Tap Material | High Speed Steel |
| Pitch Diameter Limit | H4 |
| Tap Dimension Type | Inch |
| Tap Style | Thread Forming |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Shank Dia. | 0.194 in |
| Tap Size | #10 |
| Cutting Direction - Machining | Right Hand |
| Primary Material Application | Brass, Copper, Bronze, Aluminum, Stainless Steel, Steel |
| Class of Fit | 2B |
| Threads per Inch | 32 |
| Shank Length | 1-1/2 in |
| Series | 1092 |
| 55% Thread Drill Size | 4.52 mm |
| Spiral Direction | Neutral |
| Thread Limit | H4 |
| Material Grade - Machining | 1092 |
| 75% Thread Drill Size | 4.4 mm |
| Thread Standard | UNF |
| Thread Size | #10-32 |
| 65% Thread Drill Size | 4.45 mm |
| Primary Material Application ISO Code | P, N, M |
| Extended Neck | Yes |
| Square Size | 0.152 in |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
