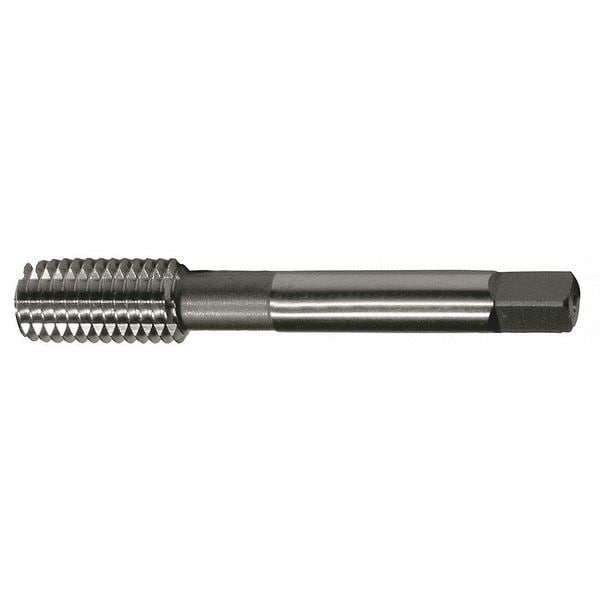

Thread Forming Tap, #2-56, Bottoming, Bright, 0 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | #2-56 |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Number of Flutes | 0 |
| Overall Length | 1-3/4 in |
| Tap Material | High Speed Steel |
| Pitch Diameter Limit | H2 |
| Tap Dimension Type | Inch |
| Thread Direction | Right Hand |
| Thread Length | 7/16 in |
| Tap Thread Type | UNC |
| Number of Pieces | 1 |
| List Number | 1092 |
| Shank Dia. | 0.141 in |
| Standards | USCTI Table 302A |
| Tap Style | Thread Forming |
| Tap Size | #2 |
| Cutting Direction - Machining | Right Hand |
| Thread Standard | UNC |
| 55% Thread Drill Size | 2.01 mm |
| Thread Size | #2-56 |
| Threads per Inch | 56 |
| Material Grade - Machining | 1092 |
| Primary Material Application ISO Code | P, N, M |
| Thread Limit | H2 |
| Extended Neck | Yes |
| Spiral Direction | Neutral |
| Shank Length | 1-9/32 in |
| Primary Material Application | Brass, Copper, Bronze, Aluminum, Stainless Steel, Steel |
| 75% Thread Drill Size | 1.95 mm |
| Square Size | 0.11 in |
| 65% Thread Drill Size | 5/64 in |
| Class of Fit | 2B |
| Series | 1092 |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
