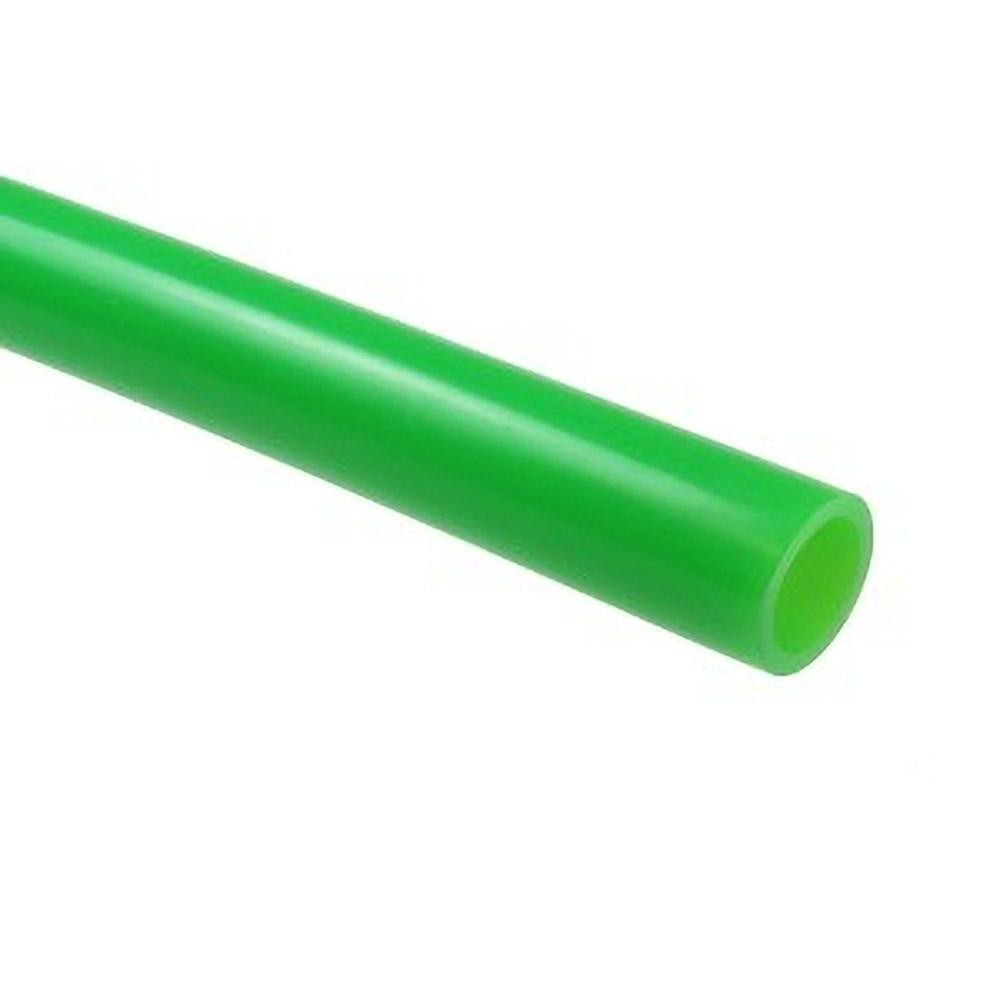

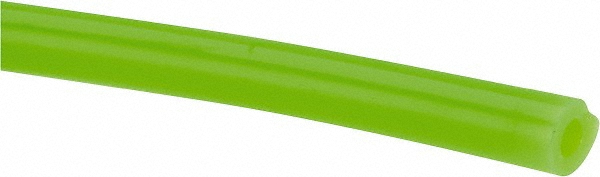

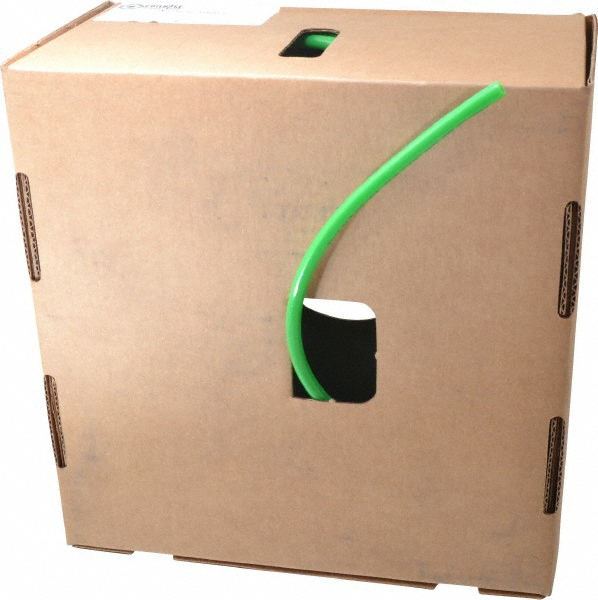

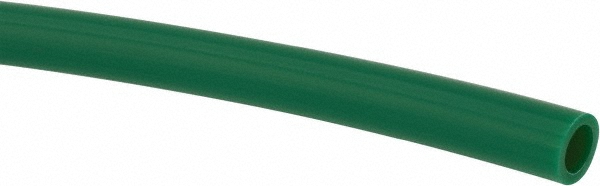

173 Max psi, -40 to 150 ° F, Green, Priced as 1' Increments, 25' Minimum Cut Length, 1,000' Total Coil Length
| Inside Diameter (Inch) | 11/64 |
|---|---|
| Inside Diameter (Decimal Inch) | 0.1700 |
| Outside Diameter (Inch) | 1/4 |
| Wall Thickness (Decimal Inch) | 0.0400 |
| Tube Color | Green |
| Material | Polyethylene |
| Length | CTL |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Standard Coil Length (Feet) | 1000 |
| Maximum Temperature (F) ( - 0 Decimals) | 150 |
| Maximum Working Pressure (psi) | 173 |
| Flexibility | Flexible |
| Hardness | Shore 50D |
| For Use With | Coilock Push-to-Connect Fittings; Poly-Tube Fittings |
| Fda Compliant | Yes |
| Standards | FDA; NSF-51 |
| UNSPSC Code | 40141900 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 48655963 |
