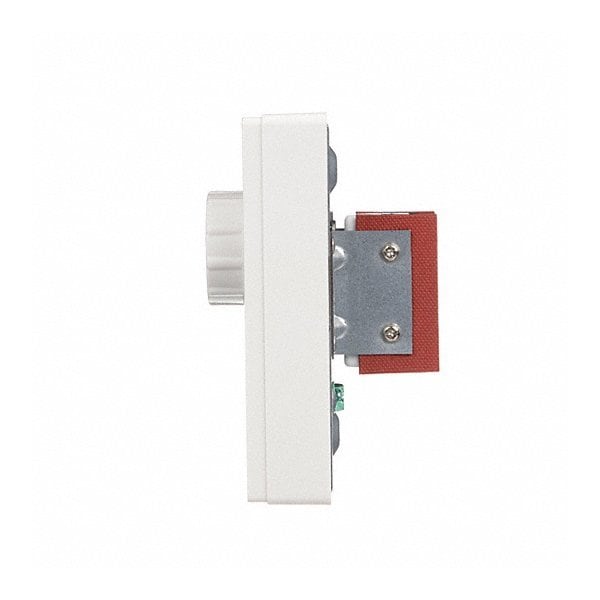

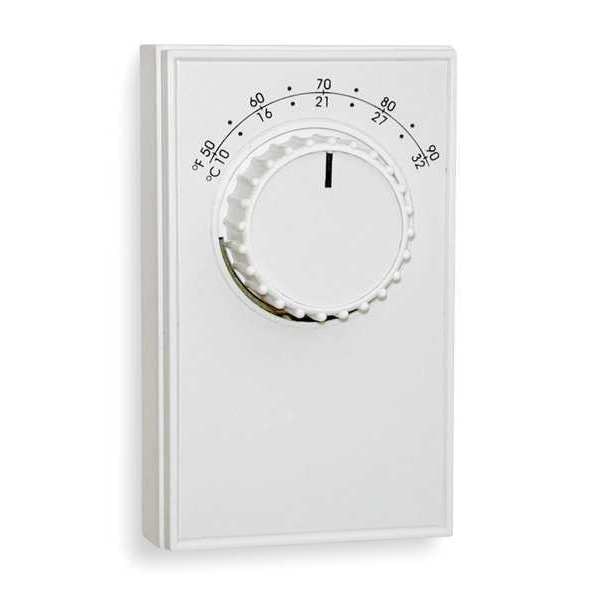

Line Voltage Mechanical Thermostat For Wall, 50 to 90 Degree Analog Dial, Cool/Heat/Off, White
| Switch Action | Open/Close on Rise |
|---|---|
| Sensor Type | Bi-Metallic Spring |
| Differential | 2 to 4 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 50 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPDT |
| Color | White/Metallic Plate |
| Width | 2-3/4 in |
| Height | 4-3/4 in |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Switch Type | SPDT |
| Standards | CSA, UL |
| Thermostat Voltage | 120 to 277 V AC |
| Thermostat Programmable | No |
| Mounting Type | Vertical |
| Contact Rating Resistive @ 277V | 22 A |
| Inductive Amps @ 120V | 13.8 A |
| Locked Rotor Amps @ 120V | 82.8 A |
| Number of Switches | 1 |
| Remote Sensing Capability | No |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Depth | 1-1/2 in |
| Contact Rating Resistive @ 120V | 22 A |
| Full Load Amps @ 120VAC | 22 A |
| Includes | Thermometer |
| Item | Line Volt Mechanical Tstat |
| Full Load Amps @ 240VAC | 22 A |
| Remote Sensing Bulb Included | No |
| Locked Rotor Amps @ 240V | 60 A |
| Inductive Amps @ 240V | 10 A |
| Mounting | Standard 4 x 4" Vertical Box |
| Control Range | 50 to 90 deg F |
| Application | Heat or Cool |
| For Use With | Blowers, Furnace Fans, Baseboard and Ceiling Heaters |
| Control Type | Exposed Dial |
| Display | Analog |
| Voltage Range | 120 to 277 VAC |
| Type | Heating/Cooling |
| Compatible System Type | Electric Cooling, Electric Heating |
| Temperature Control Range | 50 to 90 deg F |
| Number of Cooling Stages | 1 |
| Overall Height | 4-3/4 in |
| Includes Positive Off | No |
| System Settings | Cool-Heat-Off |
| Housing Color | White |
| Temperature Differential | 2 Degrees to 4 Degrees F |
| Number of Heating Stages | 1 |
| Mounting Direction | Vertical |
| Minimum Control Temperature | 50 deg F |
| Stages | 1H, 1C |
| Overall Depth | 1-1/2 in |
| Overall Width | 2-7/8 in |
| Differential Type | Fixed |
| Changeover Type | Manual |
| Temperature Readout | Yes |
| Housing Material | Plastic |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Control Temperature | 90 deg F |
| Fan Settings | No Fan Setting |
| Country of Origin (subject to change) | Hong Kong |
| Package Quantity | 1 |
