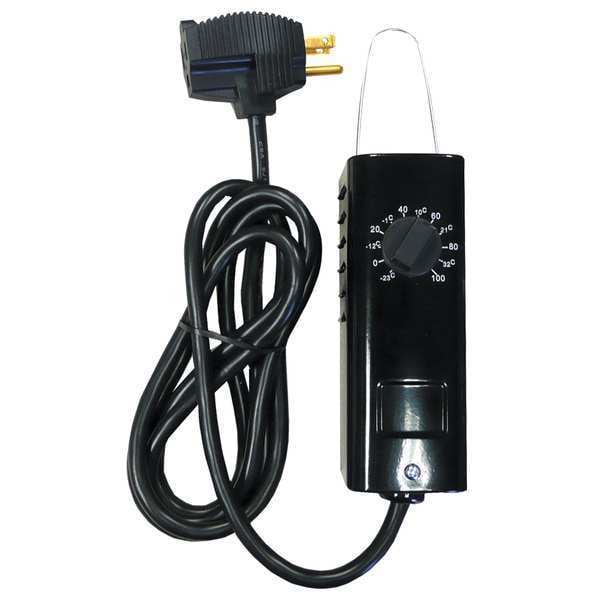

Portable Cooling Thermostat, Close on Rise, SPST, 110 to 125V AC
| Switch Action | Close on Rise |
|---|---|
| Voltage | 110 to 125V AC |
| Sensor Type | Bi-Metal |
| Differential | 6 to 8 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | -10 to 100 deg F |
| Switch Type | SPST |
| Color | Black |
| Width | 2-1/2 in |
| Height | 5-1/2 in |
| Standards | CSA, UL |
| For Use With | Portable Cooling Equipment |
| Includes | 6 ft Cord with Piggyback Plug, Mount with Suspension Chain or Wire |
| Resistive Amps @ 120V | 13.8 A |
| Enclosure Type | STEEL |
| Thermostat Voltage | 110 to 125 V AC |
| Inductive Amps @ 120V | 13.8 A |
| Item | Portable Cooling Thermostat |
| Thermostat Switch Type | SPST |
| Depth | 2 in |
| Locked Rotor Amps @ 120V | 58.8 A |
| Mounting | Suspension Chain or Wire |
| Thermostat Type | Portable Cooling |
| Application | Cool Only |
| Contact Rating Resistive @ 120V | 13.8 A |
| Type | Piggyback Plug |
| Features | HSJ Cord with Piggyback Plug, Mount with Suspension Chain or Wire |
| Control Type | Mechanical Selector Dial |
| Key Pad Lockout | No |
| Overall Depth | 2 in |
| Compatible System Type | Portable Cooling Equipment |
| Maximum Control Temperature | 100 deg F |
| Enclosure Color | Black |
| Electrical Connection Type | Corded |
| Overall Height | 5-1/2 in |
| Housing Material | Steel |
| Programming Capability | Not Programmable |
| Housing Color | Black |
| Minimum Control Temperature | -10 deg F |
| Temperature Differential | 6 Degrees to 8 Degrees F |
| Overall Width | 2-1/2 in |
| System Settings | Cool-Off |
| Contact Rating | 120 V AC |
| Switch Type/Action | SPST on Rise |
| Enclosure Rating/Material | Not Rated, Steel |
| Temperature Control Range | -10 to 100 deg F |
| Enclosure NEMA Rating | Not Rated |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature settings per day | Manual Adjust |
| Amperage | 13.8 A |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
