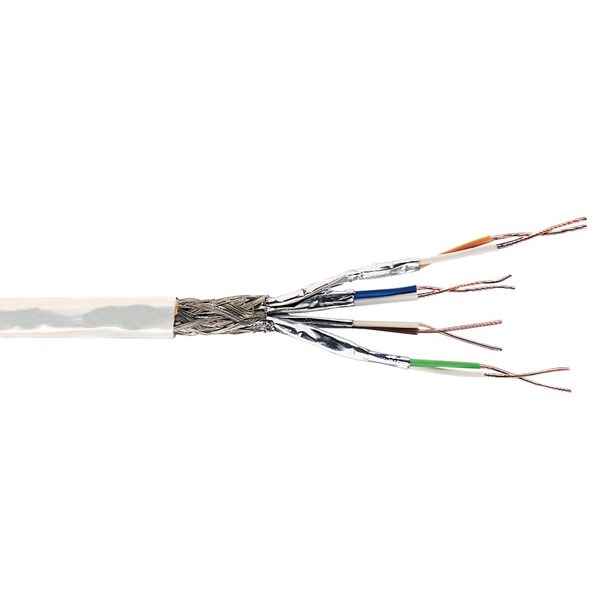

Cable de red Categoría 7A, con 4 pares y blindaje S/FTP, de color blanco, de 22 soluciones, con una longitud de 1000 metros.
| Jacket Color | White |
|---|---|
| Jacket Material | Low Smoke Fire Retardant Zero Halogen (LSFRZH) |
| Operating Frequency, maximum | 1200 MHz |
| Diameter Over Jacket, nominal | 7.798 mm | 0.307 in |
| Pairs, quantity | 4 |
| Product Type | Twisted pair cable |
| Pulling Tension, maximum | 11.34 kg | 25 lb |
| Jacket Thickness | 0.635 mm | 0.025 in |
| Nominal Velocity of Propagation (NVP) | 0.8 |
| dc Resistance Unbalance, maximum | 0.02 |
| Portfolio | NETCONNECT® |
| Mutual Capacitance at Frequency | 4.1 nF/100 m @ 1 kHz |
| Cable Length Tolerance | ±5% |
| Environmental Space | Fire Retardant Low Smoke Zero Halogen (FRLSZH) |
| Cable Type | FTP, S |
| Conductor Type, singles | Solid |
| Flame Test Method | EN 50399 | IEC 60332-3 |
| dc Resistance, maximum | 6.51 ohms/100 m | 1.984 ohms/100 ft |
| Cable Component Type | Horizontal |
| Coupling Attenuation | Type I |
| Smoke Test Method | IEC 61034-2 |
| Insulation Material | Foamed polyethylene (FPE) |
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
| Acid Gas Test Method | IEC 60754-2 |
| Conductor Gauge, singles | 22 AWG |
| Characteristic Impedance | 100 ohm |
| Cable Length | 1000.000 m | 3280.84 ft |
| Safety Voltage Rating | 240 V |
| Operating Temperature | -20°C to +60°C |
| Conductor Material | Bare copper |
| Segregation Class | d |
| Conductors, quantity | 8 |
| Transmission Standards | ANSI/TIA-568.2-D | IEC 61156-7 | ISO/IEC 11801 Class FA |
| Shield (Tape) Material | Aluminum/Polyester |
| Installation temperature | 0°C to +50°C (+32°F to +122°F) |
| Operating Voltage, maximum | 80 V |
| Diameter Over Conductor | 1.501 mm | 0.0591 in |
| ANSI/TIA Category | 7A |
| Delay Skew, maximum | 12 ns |
| Package Quantity | 1 |
