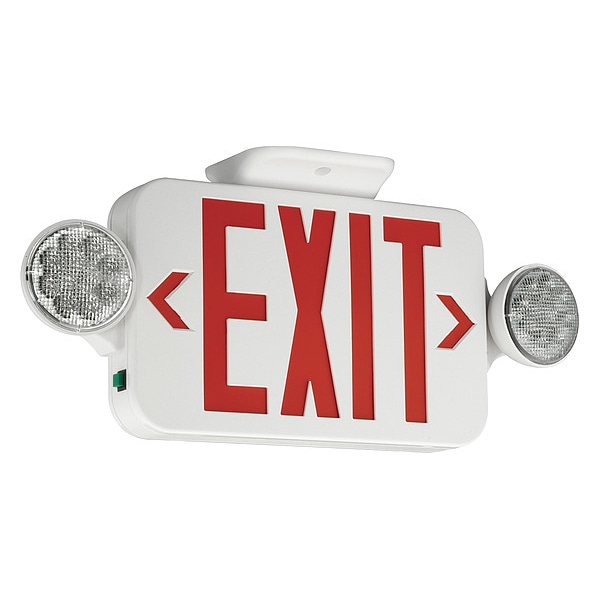

Exit Sign with Emergency Lights, 7 1/4 in H x 18 in W, LED, Flush Mount, 2 Lamp Heads, White/Red
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 18 in |
| Height | 7-13/64 in |
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 1 or 2 |
| Mounting | Flush Only |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Head Lamps Adjustable | Yes |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Emergency Back Up Battery | Yes |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Optional Guard | Y |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | LED |
| Letter Size | 6 in |
| Warranty | 2 yr |
| Includes | Canopy |
| Depth | 2 in |
| Number of Lamp Heads | 2 |
| Standards | 101 OSHA, NFPA 70, UL 924 |
| Fixture Wattage | 4.1 W |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Operating Temp. Range | 10 to 40 deg C |
| Background Color | White |
| Emergency Wattage | 4.12 W |
| Overall Width | 18 in |
| Remote Capable | No |
| Text Size | 6 in High |
| Recommended Mounting Height | 7 ft 6 in |
| Text Height | 6 in |
| Self Diagnostics | No |
| Compliance Type | None |
| Emergency Battery Backup | Yes |
| Series | CC |
| Text Color | Red |
| Overall Depth | 2 in |
| Maximum Operating Temperature | 40 deg C |
| Minimum Operating Temperature | 10 deg C |
| Lamp Head Location | Side |
| Number of Bulbs | 2 |
| Recommended Single Fixture Spacing | 12 ft |
| Diagnostic Testing Function | Test Button |
| Lamp Head Light Source | LED |
| Lamp Head Shape | Round |
| Application | Damp Location |
| Lamp Wattage | 4.1 W |
| Overall Height | 7-1/4 in |
| CA Title 20 Compliant | Yes |
| Manufacturers Warranty Length | 2 yr |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
