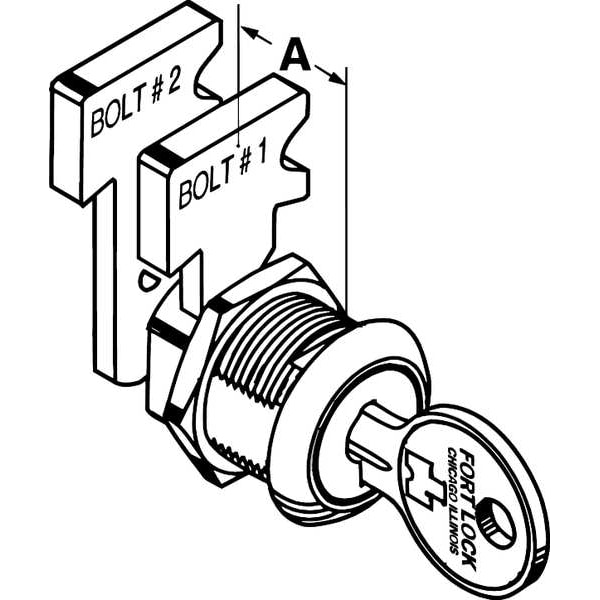

Cabinet and Drawer Dead Bolt Locks, Stainless Steel, 1/4 For Door Thickness, 2 Number of Keys
| For Door Thickness (In.) | 1/4 |
|---|---|
| Item | Cabinet and Drawer Dead Bolt Locks |
| Key Type | Alike |
| Keying | Keyed Alike |
| Finish | Stainless Steel |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Key Number | 217 |
| For Material Thickness | 1/2 in |
| Mounting Hardware | Included |
| Lock Style | Drawer |
| Lock Type | Dead Bolt |
| Drawer and Cabinet Lock Mounting Style | Rim |
| Max. Latching Distance (In.) | 7/16 |
| Mounting Hole Dia. (In.) | 3/4 |
| Includes | Mounting Nut, 2 Bolts |
| Standards | BIFMA |
| Interchangeable Core | No |
| Unlock Turn Direction | Clockwise |
| Lock Body Material | Zinc Die-Cast |
| Mounting Style | Through Hole |
| Latch Bolt Shape | Rectangle |
| Key Retaining | Yes |
| Mounting Hardware Required | Yes |
| Series | MFW 23010 |
| Body Width | 7/8 in |
| Throw Length | 5/16 in |
| Lock Body Color | Silver |
| Cylinder Diameter | 3/4 in |
| Unlocking Radius | Half-turn |
| Lock Body Finish | Chrome-Plated |
| Number of Mounting Holes | 1 |
| For Material | Metal |
| Cabinet Lock Type | Cabinet and Drawer Dead Bolt Locks |
| Latch Bolt Projection | 5/16 in |
| Body Thickness | 1-1/16 in |
| Body Height | 7/8 in |
| Key Code | 217 |
| Includes Mounting Hardware | Yes |
| Rear Projection | 7/16 in |
| Security Level | General Security |
| Type | Disc Tumbler |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
