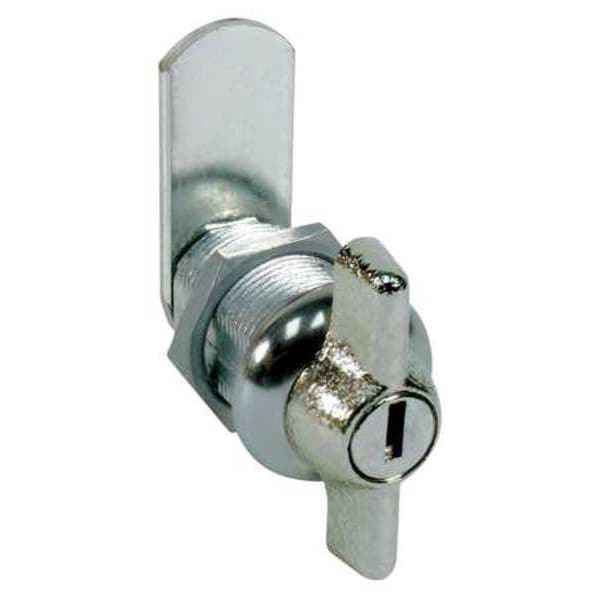

Wing-Handle Keyed Cam Lock, 9/16 in For Door Thickness, 2 Number of Keys, Different Key Type
| For Door Thickness (In.) | 9/16 |
|---|---|
| Item | Wing-Handle Keyed Cam Lock |
| Key Type | Different |
| Keying | Keyed Different |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Cam Lock Type | Keyed |
| Cam Type | Straight, Offset |
| For Material Thickness | 9/16 in |
| Max. Latching Distance (In.) | 1-3/16 |
| Weather Resistant | No |
| Mounting Hole Dia. (In.) | 3/4 |
| Lock Body Material | Zinc Die-Cast |
| Unlock Turn Direction | Clockwise, Counterclockwise |
| Interchangeable Core | No |
| Offset Cam Length | 1-1/8 in |
| Offset Cam Width | 5/8 in |
| Latching Distance | 1-3/16 in |
| Straight Cam Width | 5/8 in |
| Straight Cam Length | 1-1/4 in |
| Unlocking Radius | Quarter-Turn |
| Security Level | General Security |
| Lock Body Finish | Nickel |
| Number of Locks in Pack | 25 |
| Head Dia. | 7/8 in |
| Body Color | Silver |
| Mounting Hardware Required | Yes |
| Series | Locking thumb turn |
| Keyed Cam Lock Type | Wing-Handle Keyed Cam Lock |
| Cylinder Length | 7/8 in |
| Keyway Type | Fort KT1 |
| For Material | Metal |
| Includes Mounting Hardware | Yes |
| Key Retaining | No |
| Key Code | Varies |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
