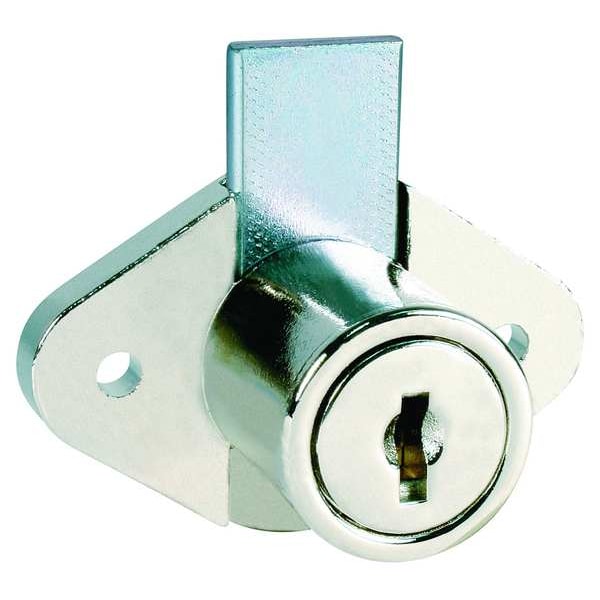

Cabinet and Drawer Dead Bolt Locks, Brass, 15/16" For Door Thickness, 2 Number of Keys
| Item | Cabinet and Drawer Dead Bolt Locks |
|---|---|
| For Door Thickness (In.) | 15/16 |
| Key Type | Different |
| Keying | Master Keyed |
| Finish | Brass |
| For Use With | Drawers and Doors, Surface Mounted |
| Opens With | Key |
| Mounting Hole Dia. | 7/8 in |
| Number of Keys | 2 |
| Key Number | 4TYH5 |
| For Material Thickness | 15/16 in |
| Mounting Hole Dia. (In.) | 7/8 |
| Lock Type | Dead Bolt |
| Max. Latching Distance (In.) | 1/8 |
| Lock Style | Drawer |
| Mounting Hardware | Included |
| Drawer and Cabinet Lock Mounting Style | Rim |
| Mounting Style | Through Hole |
| Standards | BIFMA |
| Lock Body Material | Zinc Die-Cast |
| Interchangeable Core | No |
| Unlock Turn Direction | Clockwise |
| Latch Bolt Shape | Rectangle |
| Body Height | 1-27/64 in |
| Master Key Code | D8799 |
| Number of Mounting Holes | 3 |
| Lock Orientation | Vertical |
| Lock Body Finish | Brass |
| Lock Body Shape | Diamond |
| Body Thickness | 1-3/16 in |
| Cabinet Lock Type | Cabinet and Drawer Dead Bolt Locks |
| Cylinder Diameter | 7/8 in |
| Throw Length | 11/32 in |
| Body Width | 2-1/16 in |
| Rear Projection | 11/32 in |
| Distance Between Mounting Holes | 1-7/16 in |
| Security Level | General Security |
| Latch Bolt Projection | 11/32 in |
| Lock Body Color | Gold |
| Includes Mounting Hardware | Yes |
| Key Retaining | No |
| Mounting Hardware Required | Yes |
| Series | C8803 |
| Unlocking Radius | Half-turn |
| For Material | Wood |
| Type | Disc Tumbler |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
