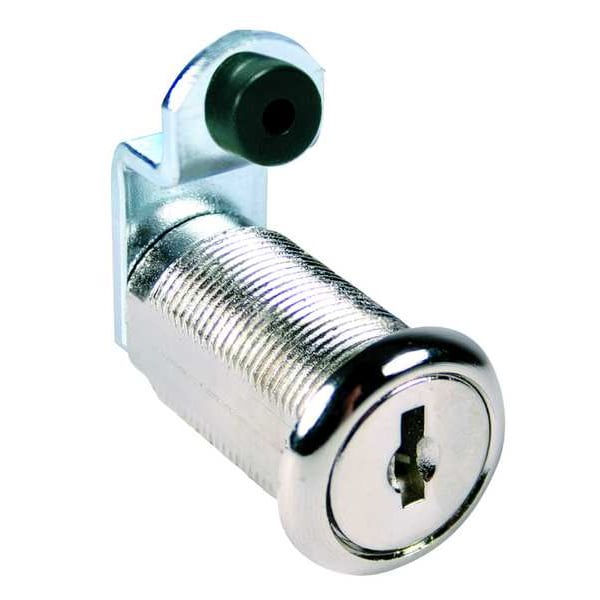

Disc Tumbler Keyed Cam Lock, Bright Nickel, 7/8 in For Door Thickness, 2 Number of Keys
| Item | Disc Tumbler Keyed Cam Lock |
|---|---|
| For Door Thickness (In.) | 7/8 |
| Key Type | Alike |
| Keying | Keyed Alike |
| Finish | Bright Nickel |
| For Use With | Drawers, R.H. or L.H. Doors with Lipped/Overlay Construction (straight cam) or Flush Construction; Overlay Application, the Combined Thickness of Front and Frame Cannot Exceed the Cylinder Length |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Cam Lock Type | Keyed |
| Cam Width (In.) | 5/8 |
| Head Dia. (In.) | 7/8 |
| Key Number | C420A |
| Cam Length (In.) | 1-1/8, 1-1/2 |
| Cam Type | Straight, Offset |
| For Material Thickness | 7/8 in |
| Includes | Two Cams, Hardware |
| Number of Pins | 5 |
| Unlocking Radius (Deg.) | 90 |
| Unlock Turn Direction | Clockwise |
| Mounting Hole Dia. (In.) | 3/4 |
| Offset (In.) | 0, 11/32 |
| Max. Latching Distance (In.) | 17/32, 1-3/16 |
| Weather Resistant | No |
| Interchangeable Core | No |
| Lock Body Material | Zinc Die-Cast |
| Standards | BIFMA |
| Includes Mounting Hardware | Yes |
| Key Code | C420A |
| Number of Locks in Pack | 25 |
| For Material | Wood, Metal |
| Series | National disc tumbler cam lock |
| Lock Body Finish | Nickel |
| Straight Cam Length | 1-1/2 in |
| Body Color | Silver |
| Key Retaining | No |
| Security Level | General Security |
| Mounting Hardware Required | Yes |
| Unlocking Radius | Quarter-Turn |
| Straight Cam Width | 5/8 in |
| Cylinder Length | 1-3/16 in |
| Keyway Type | National D8785 |
| Offset Cam Length | 1-1/8 in |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Offset Cam Width | 5/8 in |
| Head Dia. | 7/8 in |
| Latching Distance | 1-3/16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
