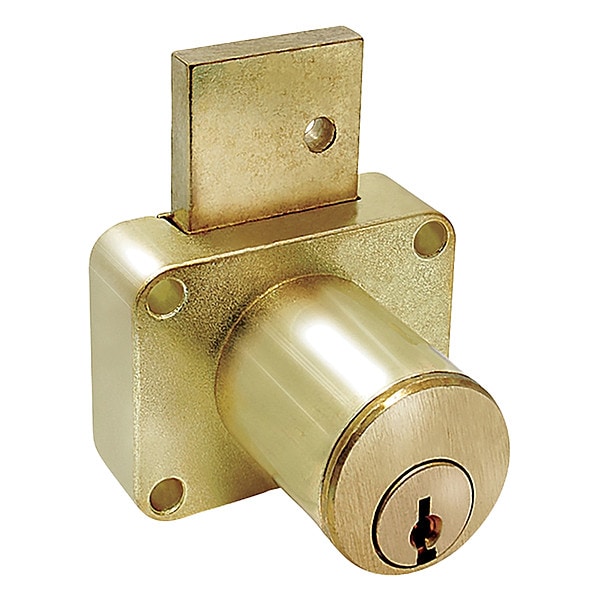

Removable Core Plug Cabinet and Drawer Dead Bolt Locks, Satin Brass, 7/8" For Door Thickness
| Item | Removable Core Plug Cabinet and Drawer Dead Bolt Locks |
|---|---|
| For Door Thickness (In.) | 7/8 |
| Key Type | Alike |
| Finish | Satin Brass |
| For Use With | Drawers, R.H. or L.H. Doors, Surface Mounted |
| Opens With | Key |
| Mounting Hole Dia. | 29/32 in |
| Number of Keys | 2 |
| Key Number | 915 |
| For Material Thickness | 7/8 in |
| Drawer and Cabinet Lock Mounting Style | Rim |
| Lock Style | Drawer |
| Mounting Hole Dia. (In.) | 57/64 |
| Max. Latching Distance (In.) | 1/4 |
| Includes | Strike |
| Standards | ANSI/BHMA Grade 2 |
| Lock Type | Dead Bolt |
| Mounting Hardware | Included |
| Lock Body Material | Steel |
| Unlock Turn Direction | Clockwise |
| Mounting Style | Through Hole |
| Latch Bolt Shape | Rectangle |
| Cylinder | 7/8" |
| Body Width | 1-5/8 in |
| Lock Body Shape | Rectangular |
| Cabinet Lock Type | Cabinet and Drawer Dead Bolt Locks |
| Lock Body Finish | Brass |
| Cylinder Diameter | 57/64 in |
| Latch Bolt Projection | 3/4 in |
| Series | C8178 |
| Body Height | 1-15/64 in |
| Lock Body Color | Gold |
| Unlocking Radius | Half-turn |
| For Material | Wood |
| Lock Orientation | Horizontal Left |
| Body Thickness | 1-3/8 in |
| Number of Mounting Holes | 5 |
| Mounting Hardware Required | Yes |
| Removable Plug | Yes |
| Security Level | General Security |
| Throw Length | 3/4 in |
| Includes Mounting Hardware | Yes |
| Rear Projection | 3/4 in |
| Distance Between Mounting Holes | 15/16 in |
| Type | Small Format Pin Tumbler |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
