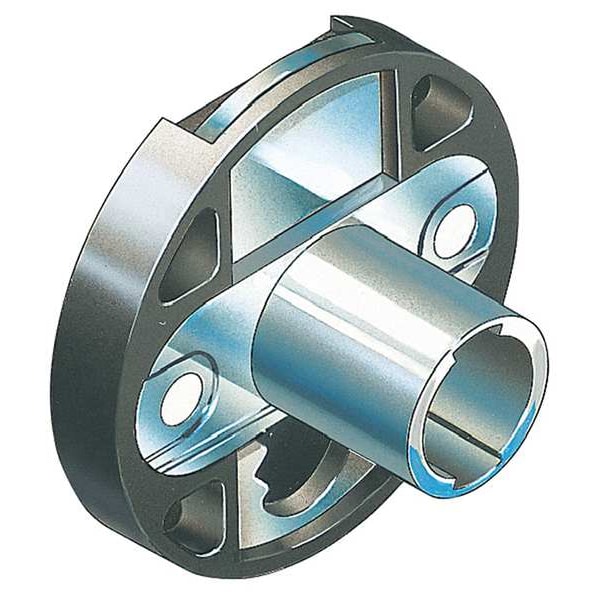

Removable Core Plug Cabinet and Drawer Dead Bolt Locks, SFIC Key, For Material Thickness 3/4 in
| Item | Removable Core Plug Cabinet and Drawer Dead Bolt Locks |
|---|---|
| For Door Thickness (In.) | 3/4 |
| Key Type | SFIC |
| For Use With | Locking Drawers |
| Opens With | Key |
| Mounting Hole Dia. | 21/32 in |
| Key Number | SFIC |
| For Material Thickness | 3/4 in |
| Mounting Hole Dia. (In.) | 21/32 |
| Lock Style | Drawer |
| Interchangeable Core | Yes |
| Max. Latching Distance (In.) | 27/32 |
| Lock Type | Dead Bolt |
| Drawer and Cabinet Lock Mounting Style | Rim |
| Mounting Style | Through Hole |
| Lock Body Material | Zinc Die-Cast |
| Standards | BIFMA |
| Latch Bolt Shape | Rectangle |
| Cylinder | 3/4" |
| Unlock Turn Direction | Counterclockwise |
| Lock Orientation | Vertical |
| Cylinder Diameter | 3/4 in |
| Body Width | 1-3/4 in |
| Body Height | 1-3/4 in |
| Throw Length | 1/2 in |
| Includes Mounting Hardware | No |
| Mounting Hardware Required | Yes |
| Lock Body Shape | Square |
| For Material | Wood |
| Latch Bolt Projection | 1/2 in |
| Security Level | General Security |
| Rear Projection | 1/2 in |
| Lock Body Finish | Zinc-Plated |
| Distance Between Mounting Holes | 1-1/4 in |
| Cabinet Lock Type | Cabinet and Drawer Dead Bolt Locks |
| Body Thickness | 1-1/16 in |
| Lock Body Color | Black |
| Removable Plug | Yes |
| Series | 230 |
| Unlocking Radius | Half-turn |
| Number of Mounting Holes | 3 |
| Type | Drawer |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
