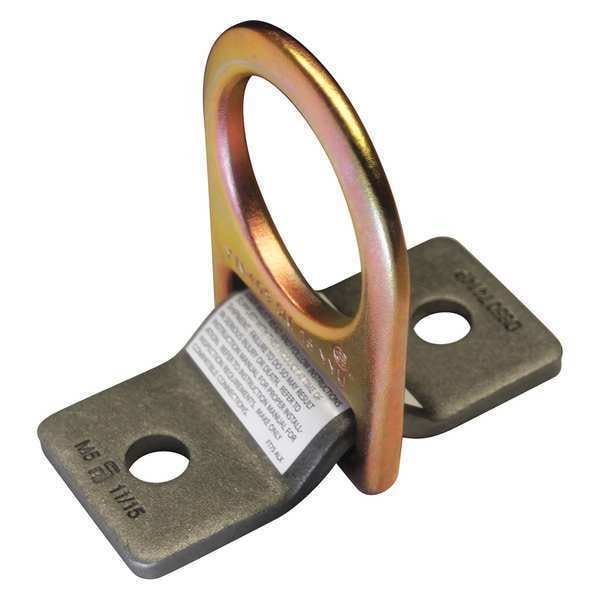

D-Ring Plate Anchor, Unplated Alloy Steel
| Item | D-Ring Plate Anchor |
|---|---|
| Standards | ANSI Z359.1-2007, OSHA 1926.502 |
| Length | 4-1/2 in |
| Weight Capacity | 425 lb |
| Tensile Strength | 5,000 lb |
| Anchor Material | Steel |
| Attachment Point | Fixed D-Ring |
| Workers per System | 1 |
| Depth | 1/4 in |
| Installation | Bolt-On, Weld-On |
| Material | Alloy Steel |
| Includes | 1/2 in Holes |
| Width | 2 in |
| Hole Dia. | 1/2 in |
| D-Ring Material | Steel |
| Visual Load Indicator | No |
| Anchor Performance | General Purpose |
| Mounting Orientation | Horizontal, Vertical |
| Includes Mounting Hardware | No |
| Anchor Installation | Permanent |
| Brand and Series | Condor |
| Number of Mounting Holes | 2 |
| Ring Diameter | 2-1/4 in |
| Anchorage End Connection | Eyebolt Plate |
| For Minimum Flange Width | Not Applicable |
| For Minimum Rail Weight | Not Applicable |
| For Maximum Rail Weight | Not Applicable |
| For Maximum Flange Width | Not Applicable |
| Beam Clamp Style | Not Applicable |
| Series | Condor |
| For Maximum Rail Head Width | Not Applicable |
| ANSI Standards Met | ANSI Z359.1-2007 |
| Mounting Hole Diameter | 1/2 in |
| OSHA Standards Met | OSHA 1926.502 |
| For Minimum Rail Head Width | Not Applicable |
| For Maximum Flange Thickness | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
