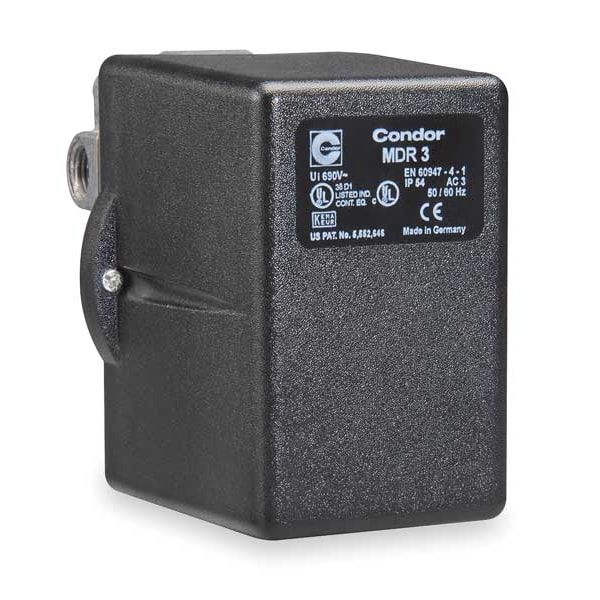

Interruptor de presión, (1) 3/8 pulgadas de hembra de rosca nacional cónica (FNPT), (3) 1/4 pulgadas de hembra de rosca nacional cónica (FNPT), (4) Puerto, 3PST, 60 a 232 psi, Acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Manual Switch Action | None |
| Pressure Switch Port Type | (1) 3/8 in FNPT, (3) 1/4 in FNPT, (4) Port |
| Pressure Switch Factory On/Off Setting | 140/175 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 30 to 110 psi |
| Pressure Switch Range | 60 to 232 psi |
| Pressure Switch Electrical Contact Form | 3PST |
| Pressure Switch Action | Standard |
| Standards | CSA and CE Certified, UL Listed |
| NEMA Rating | 1 |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Series | MDR3 |
| HP @ 3 Phase - 480V | 15 HP |
| Special Features | 35 Bar Maximum Cut-Out Pressure, 7.5 (11) kW Switching Capacity |
| AC Contact Rating | 30A @ 240V |
| HP @ 1 Phase - 240V | 5 hp |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Unloader | No Unloader |
| Contact Form | 3PST |
| Phase | Single, Three |
| Product Type | Air Pressure Switch, Water |
| Factory On Setting | 140 psi |
| Pressure Connection Type | 1/4" FNPT, 3/8" FNPT |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Minimum | -22 deg F |
| Pressure - Minimum | 60 psi |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Switch Function Configuration | None |
| Actuator Style | Diaphragm |
| Operating Temperature - Maximum | 257 deg F |
| Manufacturer Warranty Length | 1 yr |
| Differential Pressure - Minimum | 30 psi |
| Factory Off Setting | 175 psi |
| Pressure - Maximum | 232 psi |
| Differential Pressure - Maximum | 110 psi |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Number of Pressure Connection Ports | 4 |
| Pressure Switch Action Type | Standard |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Package Quantity | 1 |
