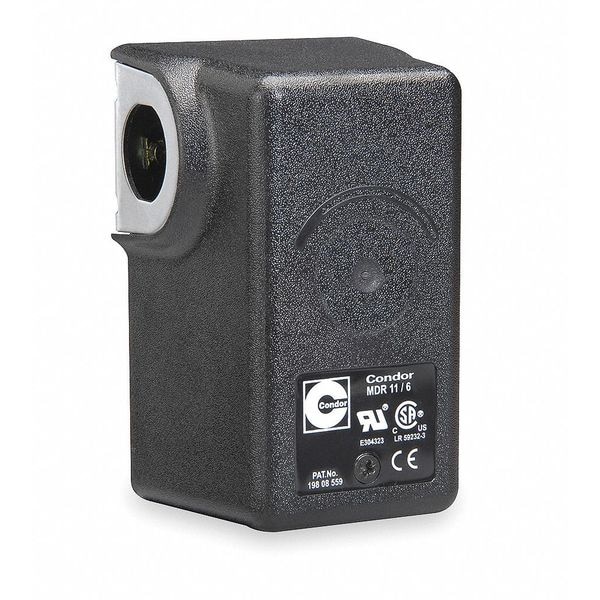

Interruptor de presión, (1) puerto, 1/4 pulgadas de hembra nominal con rosca (FNPT), DPST, 50 a 200 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Manual Switch Action | None |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 160/200 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 40 to 65 psi |
| Pressure Switch Range | 50 to 200 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Temp. Range | -22 Degrees to 257 Degrees F |
| NEMA Rating | 1 |
| HP @ 1 Phase - 240V | 3 hp |
| AC Contact Rating | 26A @ 240V |
| Special Features | 11 Bar/160 psi Maximum Cut-Out Pressure, 4 kW/4 hp Switching Capacity |
| Standards | CSA Certified, UL Listed |
| HP @ 1 Phase - 120V | 2 hp |
| Series | MDR11 |
| Contact Form | DPST |
| Phase | Single |
| Unloader | No Unloader |
| Product Type | Air Pressure Switch, Water |
| Pressure - Maximum | 200 psi |
| Pressure - Minimum | 50 psi |
| Number of Pressure Connection Ports | 4 |
| Switch Function Configuration | None |
| Factory On Setting | 160 psi |
| Pressure Switch Action Type | Standard |
| Overall Depth | 2.6 in |
| Overall Height | 4.11 in |
| Pressure Connection Type | NPT |
| Differential Pressure - Minimum | 40 psi |
| Operating Temperature - Maximum | 257 deg F |
| Operating Temperature - Minimum | -22 deg F |
| Overall Width | 4.17 in |
| Actuator Style | Diaphragm |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Manufacturer Warranty Length | 1 yr |
| NEMA Enclosure Rating | 1 |
| Factory Off Setting | 200 psi |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Differential Pressure - Maximum | 65 psi |
| Package Quantity | 1 |
