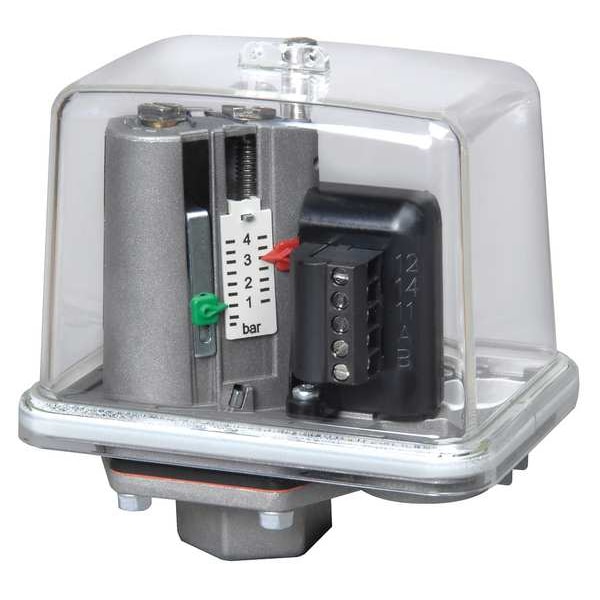

Interruptor de presión, (1) puerto, 1/4 pulgada FNPT, SPDT, 4.4 a 145 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 60/75 psi |
| Pressure Switch Differential | 5.8 to 138 psi |
| Pressure Switch Range | 4.4 to 145 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Series | MDR-F |
| Contact Form | SPDT |
| Actuation Type | Diaphragm |
| Factory On/Off Setting | 60/75 psi |
| DC Contact Rating | 6A @ 12V |
| Differential | 5.8 to 138 psi |
| Action | Standard |
| Range | 4.4 to 145 psi |
| Port Type | 1/4 in FNPT, Port |
| AC Contact Rating | 10A @ 230V |
| NEMA Rating | 1 |
| IP Rating | IP65, IP54 |
| Standards | CSA C22.2, DIN 40 050/IEC 529, UL 508 |
| Pressure Connection Type | NPT |
| Differential Pressure - Maximum | 168.24 psi |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 1 |
| Pressure - Maximum | 75 psi |
| Differential Pressure - Minimum | 84.12 psi |
| Pressure - Minimum | 60 psi |
| Operating Temperature - Minimum | -4 deg F |
| Package Quantity | 1 |
