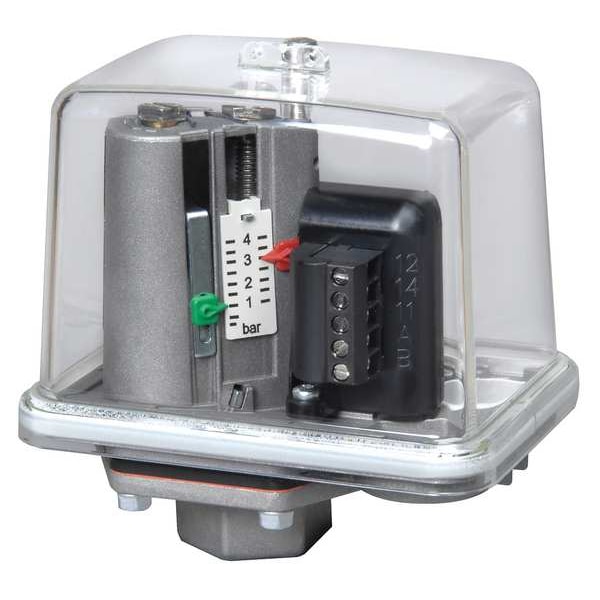

Interruptor de presión, (1) puerto, 1/4 pulgadas FNPT, SPDT, 5.8 a 232 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 80/160 psi |
| Pressure Switch Differential | 8.7 to 225 psi |
| Pressure Switch Range | 5.8 to 232 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Factory On/Off Setting | 80/160 psi |
| Range | 5.8 to 232 psi |
| Actuation Type | Diaphragm |
| Action | Standard |
| Series | MDR-F |
| Port Type | 1/4 in FNPT, Port |
| Differential | 8.7 to 225 psi |
| AC Contact Rating | 10A @ 230V |
| Contact Form | SPDT |
| NEMA Rating | 1 |
| DC Contact Rating | 6A @ 12V |
| Standards | CSA C22.2, DIN 40 050/IEC 529, UL 508 |
| IP Rating | IP65, IP54 |
| Pressure Connection Type | NPT |
| Operating Temperature - Minimum | -4 deg F |
| Differential Pressure - Minimum | 126.18 psi |
| Pressure - Minimum | 80 psi |
| Differential Pressure - Maximum | 210.3 psi |
| Operating Temperature - Maximum | 158 deg F |
| Pressure - Maximum | 160 psi |
| NEMA Enclosure Rating | 1 |
| Package Quantity | 1 |
