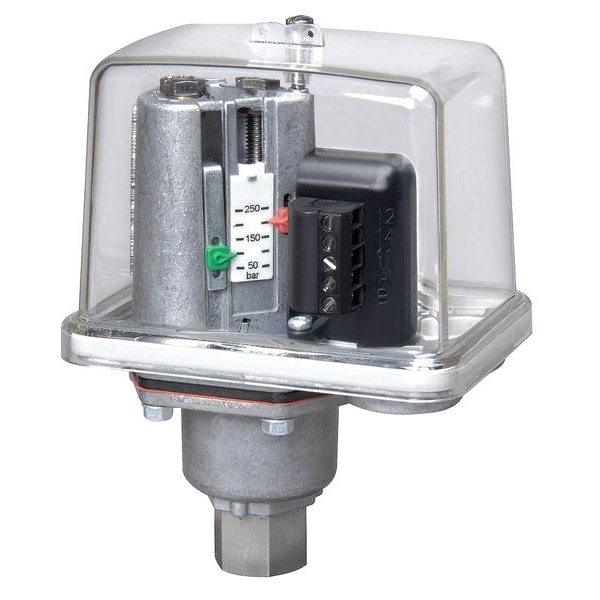

Interruptor de presión, (1) puerto, 1/4 pulgadas hembra NPT, SPDT, 58 a 870 psi, Acción Estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 290/580 psi |
| Pressure Switch Differential | 58 to 810 psi |
| Pressure Switch Range | 58 to 870 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| IP Rating | IP65, IP54 |
| Standards | CSA C22.2, DIN 40 050/IEC 529, UL 508 |
| Factory On/Off Setting | 290/580 psi |
| Action | Standard |
| Contact Form | SPDT |
| NEMA Rating | 1 |
| Series | MDR-F |
| DC Contact Rating | 6A @ 12V |
| Differential | 58 to 810 psi |
| Port Type | 1/4 in FNPT, Port |
| Actuation Type | Piston |
| AC Contact Rating | 10A @ 230V |
| Range | 58 to 870 psi |
| Differential Pressure - Minimum | 841.22 psi |
| Pressure Connection Type | NPT |
| Operating Temperature - Minimum | -4 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Differential Pressure - Maximum | 1,682.44 psi |
| Pressure - Maximum | 580 psi |
| NEMA Enclosure Rating | 1 |
| Pressure - Minimum | 290 psi |
| Package Quantity | 1 |
