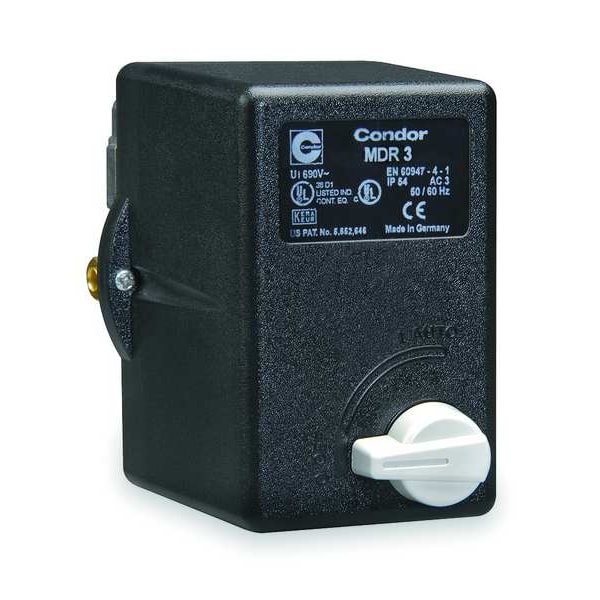

Interruptor de presión, (1) puerto, 3/8 de pulgada hembra NPT, 3PST, de 45 a 160 psi, acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Manual Switch Action | Auto, Off |
| Pressure Switch Port Type | (1) Port, 3/8 in FNPT |
| Pressure Switch Factory On/Off Setting | 100/125 psi |
| Pressure Switch Unloader | 1/4 in Compression |
| Pressure Switch Differential | 15 to 70 psi |
| Pressure Switch Range | 45 to 160 psi |
| Pressure Switch Electrical Contact Form | 3PST |
| Pressure Switch Action | Standard |
| HP @ 1 Phase - 240V | 5 hp |
| Standards | CSA and CE Certified, UL Listed |
| AC Contact Rating | 30A @ 240V |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 15 HP |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Series | MDR3 |
| NEMA Rating | 1 |
| Special Features | 35 Bar Maximum Cut-Out Pressure, 7.5 (11) kW Switching Capacity |
| Unloader | 1/4 in Compression Unloader Included |
| Phase | Single, Three |
| Contact Form | 3PST |
| Product Type | Air Pressure Switch, Water |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Pressure - Maximum | 160 psi |
| Pressure Connection Type | 3/8" FNPT |
| Actuator Style | Diaphragm |
| Switch Function Configuration | Auto, Off |
| Differential Pressure - Minimum | 15 psi |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Manufacturer Warranty Length | 1 yr |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Pressure - Minimum | 45 psi |
| Number of Pressure Connection Ports | 1 |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Operating Temperature - Minimum | -22 deg F |
| Operating Temperature - Maximum | 257 deg F |
| Pressure Switch Action Type | Standard |
| Differential Pressure - Maximum | 70 psi |
| Factory Off Setting | 125 psi |
| Factory On Setting | 100 psi |
| Package Quantity | 1 |
