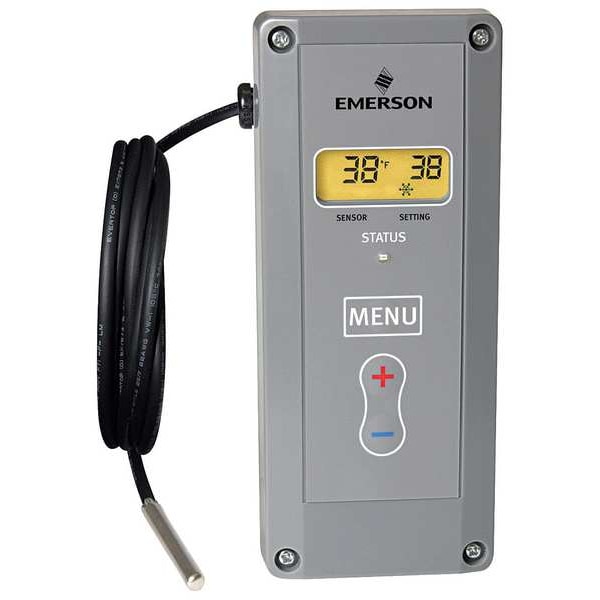

Refrigeration Control, Close on Rise, Open on Rise, -40 Degrees to 220 Degrees F, SPDT
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 120/208/240VAC |
| Sensor Type | NCT |
| Differential | 1 Degrees to 30 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 1 |
| Switch Type | SPDT |
| Color | Gray |
| Width | 3 in |
| Height | 6-3/4 in |
| Full Load Amps @ 240VAC | 8 A |
| Number of Relay Outputs | 1 |
| For Use With | Cooling, Heating, Refrigeration |
| Includes | NTC Sensor and Cross-Reference Replacement Guide |
| Thermostat Switch Type | SPDT |
| Enclosure Type | NEMA 1 |
| Agency Compliance | UL |
| Full Load Amps @ 120VAC | 16 A |
| Sensing Bulb Length | 2 in |
| Item | Refrigeration Control |
| Sensing Bulb Dia. | 1/4 in |
| Voltage Range | 24 to 240V AC |
| Depth | 2-9/16 in |
| Control Range | -40 to 220 deg F |
| Features | Electronic Temperature Accuracy, Adjustable Anti-Short Cycle Delay |
| Standards | UL |
| Input Voltage | 120V AC, 208V AC, 240V AC, 24V AC |
| Mounting | Vertical |
| Number of Stages | Single |
| Number of Switches | 2 |
| Application | Heating Control, Refrigeration |
| Capillary Length | 7-1/2 in |
| Type | Electronic Temperature Control, Heating, Cooling, Refrigeration |
| Display | LCD |
| Housing Material | Polyethylene |
| Temperature Control Function | Cool, Heat |
| Maximum Control Temperature | 220 deg F |
| IP Rating | Not Rated |
| Full Load Current @ 240V AC | 8 A |
| Number of Sensors Included | 1 |
| Contact Form | SPDT |
| Product Type | Refrigeration Control |
| Resistive Load Current @ 120V | 96 A |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Horsepower @ 240V AC | 1 HP |
| Number of SPDT Outputs | 1 |
| Compatible with Series | Not Applicable |
| Overall Height | 6-3/4 in |
| Resistive Load Current @ 240V | 48 A |
| Maximum Temperature Differential Setting | 30 deg F |
| Overall Depth | 2-5/8 in |
| Horsepower @ 120V AC | 1 HP |
| Sensing Bulb Diameter | 1/4 in |
| Full Load Current @ 120V AC | 16 A |
| Minimum Control Temperature | -40 deg F |
| Variable Output Voltage | No |
| NEMA Rating | 1 |
| Number of Sensor Inputs | 1 |
| Overall Width | 3 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
