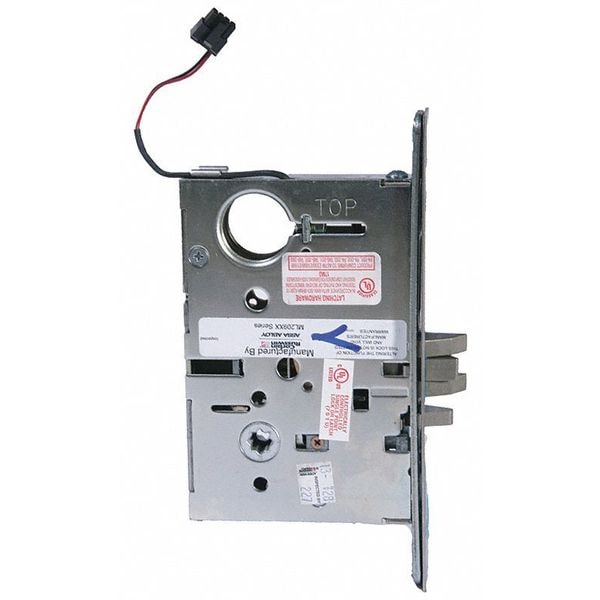

Corbin Mortise lock Case Elec NFS 24V
| Item | Mortise Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Access Control, Power Supply, Power Transfer Device |
| Includes | Scalp, Strike |
| Style | Non-Handed |
| Series | ML20900 |
| Application | Commercial |
| Features | Fail Secure, Integrates with Access Control Platforms, Integrates with New or Existing Corbin Russwin Key Systems, Including Access 3 and Pyramid, 10 yr Warranty |
| Number of Keys | 2 |
| Location Type | Commercial |
| Backset | 2 3/4 in |
| Strike Type | Lip |
| Case Size | 8 in x 1-1/4 in x 4 in |
| Case Material | Steel |
| Voltage | 12/24V DC |
| Fire Rated | 3 hr |
| Function | Fail Secure |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Standards | ANSI/BHMA A156.13, UL and ULC Listed |
| Required Door Thickness | 1 3/4 in |
| Grade | 1 |
| Handle Type | Lock Body, No Trim |
| Electrical/Mechanical | Electrical |
| Pins | 0 |
| Number of Pins | 6, 7 |
| Lockset Handle Type | Lever |
| Product Type | Mortise Lockset |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Style | Non-Handed |
| Strike Plate Thickness | 1-1/8 in |
| Strike Plate Width | 1-1/4 in |
| Lockset Type | Electrical, Mechanical |
| Strike Plate Height | 4-7/8 in |
| ANSI Grade | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
