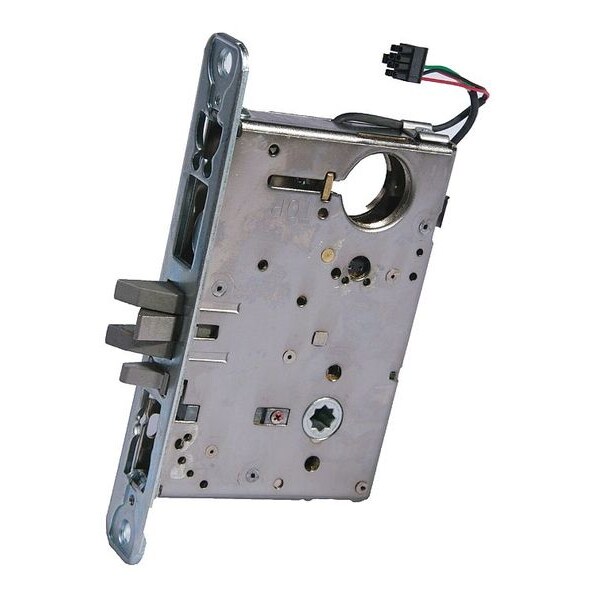

Corbin Mortise lock Case Elec NFS 24V RX
| Item | Mortise Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Access Control, Power Supply, Power Transfer Device |
| Includes | Scalp, Strike |
| Style | Non-Handed |
| Series | ML20900 |
| Features | Dual Volt, Low Current Draw, Request to Exit Monitor |
| Handle Type | Lock Body, No Trim |
| Strike Type | ANSI |
| Pins | 0 |
| Location Type | Commercial |
| Fire Rated | 3 hr |
| Electrical/Mechanical | Electrical |
| Standards | ANSI A156.13 |
| Function | Fail Secure |
| Required Door Thickness | 1 3/4 in |
| Case Material | Steel |
| Backset | 2 3/4 in |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Grade | 1 |
| Voltage | 12/24V DC |
| Case Size | 8 in x 1-1/4 in x 4 in |
| Number of Keys | 0 |
| Product Type | Mortise Lockset |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
