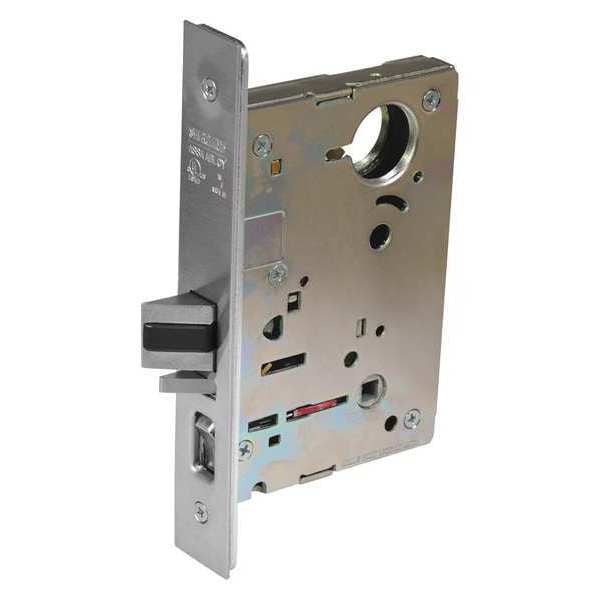

Lever Lockset, Mechanical, Entrance, Grd. 1
| Lockset Finish | Satin Chrome |
|---|---|
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Style | 8200 Rose |
| Required Door Thickness | 1-3/4 in |
| Keyway Type | None |
| Key Type | Not Keyed |
| Series | 8200 |
| Key Material | Not Applicable |
| Electrical/Mechanical | Mechanical |
| Backset | 2 3/4 in |
| ADA Compliant | Yes |
| For Use With | Sargent Mortise Locks |
| Cylinder Core Type | Conventional Core Cylinder |
| Location Type | Commercial, Industrial, Educational, Healthcare, Institutional |
| Features | Compatible with All Sargent Key Systems (Degree, Signature, Keso and XC) |
| Lockset Performance Strength | Heavy Duty |
| Number of Pins | 0 |
| Strike Type | ANSI |
| Item | Door Lockset |
| Standards | ANSI/BHMA, ANSI/SDI 250.13, ASTM E330, cUL Listed, EPD, ICC A117.1, TAS Certified, UL Listed |
| Ligature Resistant | No |
| Includes | Strike |
| Mortise/Cylindrical | Mortise |
| Handle Material | Steel |
| Number of Keys | 0 |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Keying | UnKeyed |
| Grade | 1 |
| Finish | Satin Chrome |
| Fire Rated | Yes |
| Voltage | Not Applicable |
| Pins | 0 |
| Handle Type | Lever |
| Case Material | Heavy Gauge Steel |
| Function | Office, Entrance |
| Visual Indicator Message | No Message |
| Lockset Style | 8200 Rose |
| Strike Plate Height | 4-7/8 in |
| UL Fire Rating | UL10C |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Locking/Unlocking Access - Outside | Keyway |
| Visual Indicator Location | Not Applicable |
| Lockset Type | Mechanical |
| Ligature-Resistant | Not Ligature-Resistant |
| Knob/Handle Material | Steel |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-3/4 in |
| Performance Grade | 1 |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI Grade | 1 |
| Application | Commercial, Educational, Institutional, Industrial |
| Strike Plate Width | 1-1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
