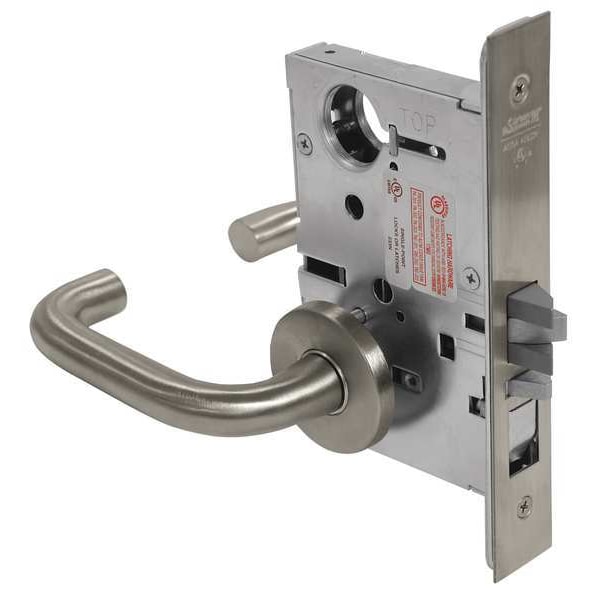

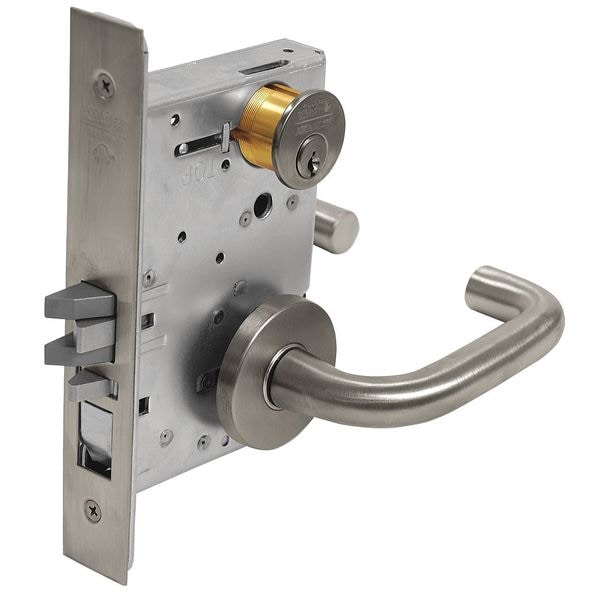

Lever Lockset, Mechanical, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Entrance |
| Lockset Grade | Grade 1 |
| Style | ML2000 Right Angle Round |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Stainless Steel |
| Keyway Type | L4 |
| Key Type | Keyed Different |
| Standards | ANSI/BHMA A156.13, ASTM E330, cUL Listed, EPD, UL Listed |
| ADA Compliant | Yes |
| Series | ML2000 |
| Key Material | Nickel Silver |
| Strike Type | Straight Lip |
| Lockset Fire Rating | 3 hr |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Number of Keys | 2 |
| Item | Door Lockset |
| Ligature Resistant | No |
| Backset | 2-3/4 in |
| Location Type | Healthcare, Institutional, School |
| Mortise/Cylindrical | Mortise |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Finish | Satin Stainless Steel |
| Number of Pins | 6 |
| Features | Integrates with Access Control Platforms |
| Keying | Keyed Different |
| Cylinder Core Type | Conventional Core Cylinder |
| Type | Mortise |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Material | Brass, Bronze, Steel, Stainless Steel |
| Handle Type | Lever |
| Function | Entrance, Office |
| Pins | 6 |
| Case Material | Brass, Steel, Zinc |
| For Door Thickness | 1-3/4" |
| Cylinder | Yes |
| Strike | ANSI 4-7/8 x 1-1/4" Curved Lip |
| Application | Commercial |
| Door Thickness - Maximum | 4 in |
| UL Fire Rating | UL10C |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Type | Mechanical |
| Lockset Style | LWA Lever |
| Strike Plate Thickness | 1 1/4 in |
| Fire Rating | 3 hr |
| Lockset Function ANSI Code | F04 |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Lip Length | 1-1/8 in |
| ANSI Grade | 1 |
| Knob/Handle Material | Steel |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Hand Orientation | Non-Handed |
| Trim Plate Shape | Round |
| Locking/Unlocking Access - Inside | Not Lockable |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 1 |
| Includes Core | Core Included |
| Ligature-Resistant | Not Ligature-Resistant |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
