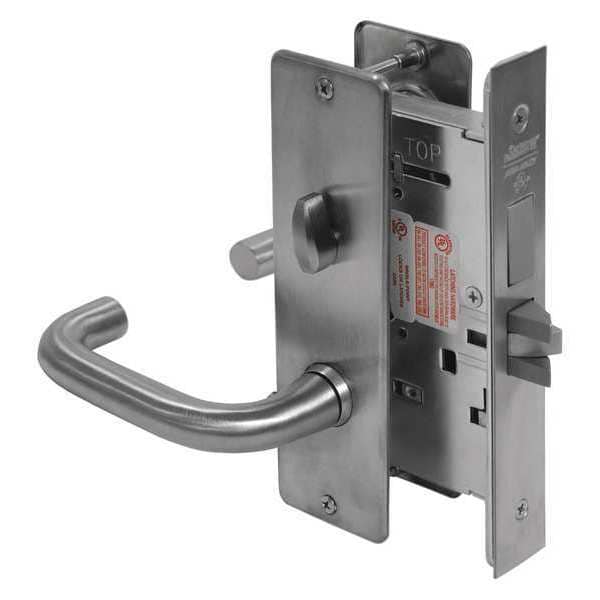

Lever Lockset, Mechanical, Privacy, Grd. 1
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial, Institutional, Healthcare, Industrial, Educational |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Chrome |
| Series | ML2000 |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Includes | Cylinder |
| Lockset Handle Type | Lever |
| For Use With | Commercial Doors |
| ADA Compliant | Yes |
| Key Type | Not Keyed |
| Lockset Finish | Satin Chrome |
| Strike Type | Straight Lip |
| Number of Keys | 0 |
| Ligature Resistant | No |
| Mortise / Cylindrical | Mortise |
| Standards | ANSI/BHMA A156.13, ASTM E330, cUL Listed, EPD, UL Listed |
| Mortise/Cylindrical | Mortise |
| Style | ML2000 Rose |
| Key Material | Not Applicable |
| Lockset Grade | 1 |
| Features | Integrates with Access Control Platforms |
| Keyway Type | L4 |
| Keying | Keyed Different |
| Fire Rated | Yes |
| Number of Pins | 6 |
| Visual Indicator Message | No Message |
| Voltage | Not Applicable |
| Pins | 6 |
| Case Material | Steel |
| Function | Privacy |
| Handle Type | Lever |
| Lockset Type | Mechanical |
| ANSI Grade | 1 |
| Locking/Unlocking Access - Outside | Emergency Release |
| Ligature-Resistant | Ligature-Resistant |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| Performance Grade | 1 |
| Latch Bolt/Dead Bolt | Dead Latch |
| Strike Plate Thickness | 1 1/4 in |
| Door Thickness - Maximum | 4 in |
| Application | Commercial |
| Strike Plate Lip Length | 1-1/8 in |
| Strike Plate Height | 4-7/8 in |
| UL Fire Rating | UL10C |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Style | Lever |
| Lockset Function ANSI Code | F19 |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
