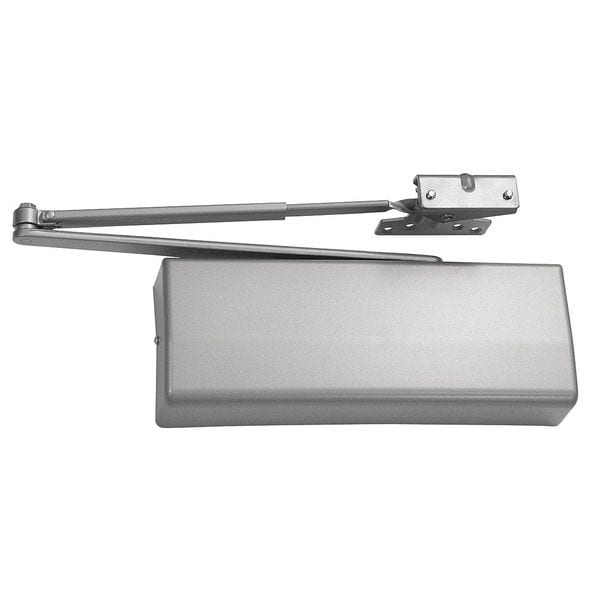

Manual, Hydraulic, Corbin 8210, Door Closer, Heavy Duty Interior and Exterior, Aluminum
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | Corbin 8210 |
| Closer Type | Hold Open |
| Color | Aluminum |
| Finish | Silver Aluminum Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 4-7/16 in |
| Housing Length | 12 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Arm Material | Cast Iron |
| Max. Door Opening | Up to 180 Degrees |
| Arm Type | Parallel |
| Includes | Self Drilling Screws |
| Standards | ANSI/BHMA Meets A156.4, Grade 1, Meets A117.1; UL/ULC/UL10c Listed |
| Exterior Door Width | 48 in |
| Interior Door Width | 60 in |
| Ligature Resistant | No |
| ADA Compliant | Yes |
| Projection from Wall | 2-1/4 in |
| Spring Size | Adjustable 1 to 6 |
| Category Type | Parallel Arm |
| Series | DC8000 |
| Type | Interior/Exterior Institutional |
| Door Handing | Non-Handed |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Hand | NH |
| Mounting Style | Universal, Parallel, Top Jamb and Standard |
| Door Opening - Maximum | 110 deg |
| Door Weight - Maximum | 250 lb |
| Interior/Exterior Use | Interior, Exterior |
| Compatible Brand | CORBIN RUSSWIN |
| Length Between Mounting Holes | 10 in |
| Operation Style | Manual |
| Spring Size - Minimum | 1 |
| Interior Door Width - Maximum | 60 in |
| Exterior Door Width - Maximum | 48 in |
| Compatible Series | Not Applicable |
| Fire Rating | 3 hr |
| Performance Grade | 1 |
| Height Between Mounting Holes | 1 in |
| Projection | 2-1/4 in |
| UL Fire Rating | UL10C |
| Closer Cycles | 25,000,000 |
| Spring Size - Maximum | 6 |
| Door Opening - Minimum | 85 deg |
| Spring Type | Adjustable |
| ANSI/BHMA Finish | Aluminum Painted |
| Product Type | Door Closer |
| Ligature-Resistant | Not Ligature-Resistant |
| Compatible Manufacturer Model Number | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
