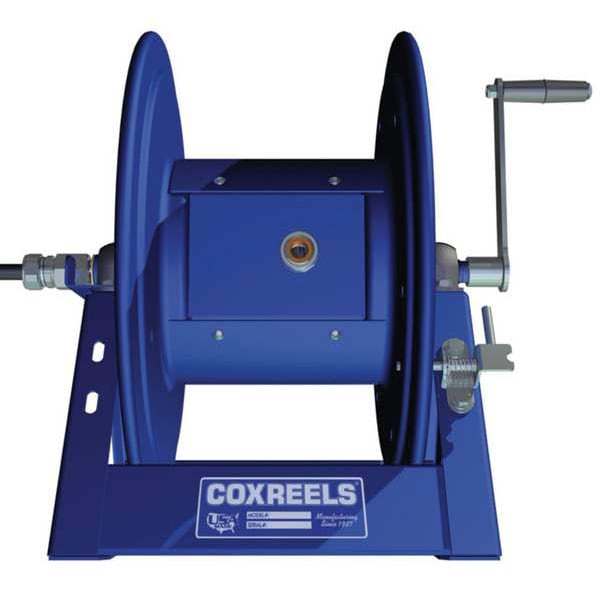

250 ft. Cord Storage Reel 45 Amps 0 Outlets 600VAC Voltage
| Item | Cord Storage Reel |
|---|---|
| Winding Method | Hand Operated |
| Voltage | 600VAC |
| Retractable Cord Length | No Cord |
| Reel Color | Blue |
| Max. Amps | 45 |
| Wire Size | No Cord |
| Cord Color | No Cord |
| Retractable Cord Ending Configuration | No Cord |
| Feeder Cord Ending Configuration | Junction Box |
| NEC Cord Designation - Ext. Cords and Outlet Strips | SO |
| Number of Outlets | 0 |
| Grade - Ext. Cords and Outlet Strips | Industrial |
| Cord Length | 250 ft |
| Cord Ending | None |
| Overall Depth | 21-1/2 in |
| Cord Ending NEMA Configuration | No Configuration |
| Overall Height | 18-1/2 in |

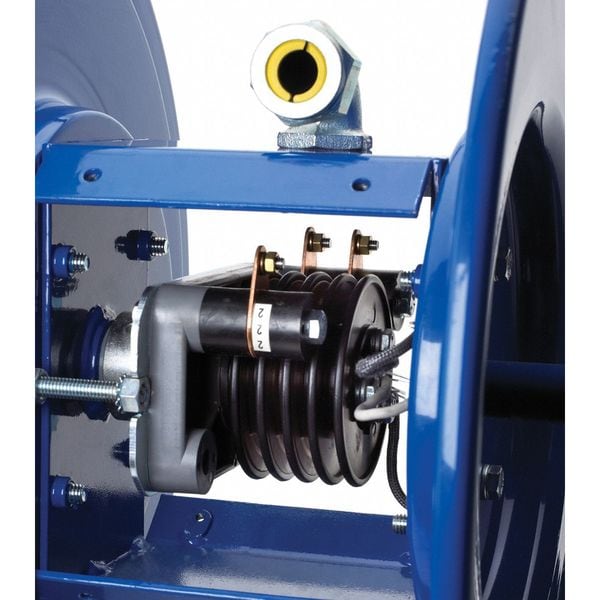

| Slip Ring Rating | 45A @ 600V |
| Cord Length - Ext. Cords and Outlet Strips | No Cord Included |
| Grade | Heavy Duty |
| Feeder Cord Ending NEMA Configuration | No Configuration |
| Watts | 27,000 |
| Enclosed Reel | No |
| Includes | All-Welded Steel "A" Frame, CPCTM Coating, Easy Access Cover Panel, Permanently Lubricated and Self-Aligning Pillow Block Bears, Robitically Spun Discs, Rolled Edges |
| Indoor / Outdoor | Indoor |
| Cord Included | No |
| Reel Material | Steel |
| Voltage - Ext. Cords and Outlet Strips | 600VAC |
| Overall Width | 17-1/2 in |
| Reel Mounting | Wall, Ceiling, Bench, Floor |
| Retractable Cord Ending | None |
| Holds | 200 ft. of 10/3, 250 ft. of 12/3 |
| NEC Cord Designation | SO |
| Reel Capacity | 200 ft of 10/3, 250 ft of 12/3 |
| Trade Designation | No Cord |
| Number of Conductors | 0 |
| Location | Indoor |
| Enclosure Rating | Not Rated |
| Amps | 45 AMP |
| Volts | 600V |
| Overall Dimensions | 21.5" x 18.5" x 17.5" |
| Base Size | 13.38 in x 15-1/4 in |
| Length | 250 ft |
| Hose | No |
| Mounting Pattern Size | 11.44 in x 10 in |
| Package Quantity | 1 |
