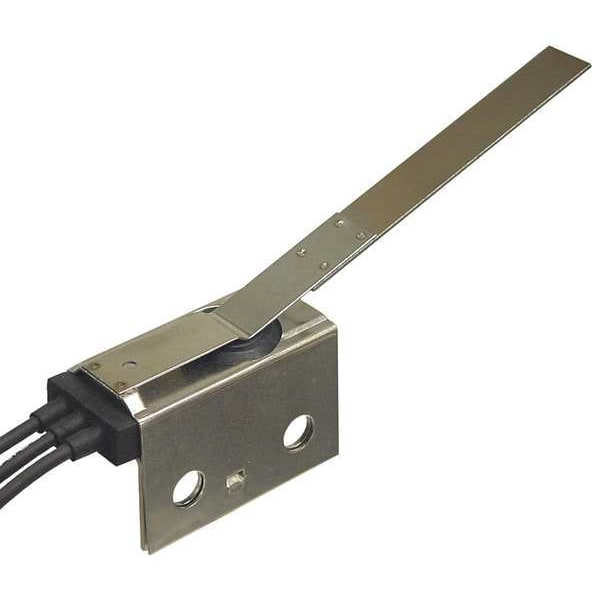

Interruptor de límite a prueba de agua, tipo hoja, palanca, SPDT, 5A @ 120V AC, Ubicación del actuador: Superior
| Item | Water Proof Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Lever |
| Actuator Style - Limit Switch | Leaf, Lever |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 120 V |
| DC Contact Rating - Limit Switch | 5 A @ 28 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Flange |
| Wiring Entry | Not Applicable |
| Movement | One Way Vertical and Direction Horizontal |
| Basic Actuator Style (Limit Switch) | Lever |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Number of Poles | 1 |
| Actuator Length | 1.04 in |
| Arm Width | 0.44 in |
| Height | 2.17 in |
| Depth | 0.97 in |
| Body Material | Stainless Steel and TPR |
| Series | E1 |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form - Limit Switch | SPDT |
| Limit Switch Style | Water Proof Limit Switch |
| Arm Material | Stainless Steel |
| Amps | 5 |
| DC Contact Rating | 5 A @ 28 V |
| Body Style (Limit Switch) | Miniature |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| NEMA Rating | No Nema Rating |
| Actuator Style | Special |
| Body Height - Limit Switch | 1.53 in |
| Operating Temp. Range | -40 to 185 deg F |
| Mounting Hole - Limit Switch | (2) 0.27 in dia |
| Actuator Location (Limit Switch) | Top |
| IP Rating | 68 |
| Electrical Connection | Flying Leads |
| Actuator Style (Limit Switch) | Lever, Leaf |
| Travel | 1.00 in Nominal |
| Body Width - Limit Switch | 1-3/4 in |
| AC Contact Rating | 5 A @ 120 V |
| Actuator Length - Limit Switch | 1.04 in |
| Body Depth - Limit Switch | 0.97 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Contact Form | SPDT |
| Voltage Rating | 120VAC/28VDC |
| Stem Thread - Limit Switch | No Stem |
| Width | 1-3/4 in |
| Actuator Location | Top |
| Differential Travel | Not Applicable |
| Roller Width | Not Applicable |
| Roller Material | Not Applicable |
| Arm Depth | 1.06 in |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Body Depth | 0.97 in |
| Mounting Hole Diameter | 0.27 in |
| Wireless Network Interface | Not Applicable |
| Directional Movement | Linear |
| Arm Length - Maximum | 3.11 in |
| Mounting Style | Flange |
| Operating Torque - Minimum | Not Applicable |
| Body Height | 1.53 in |
| Arm Adjustability | Fixed |
| Hazardous Location Specification | Not Rated |
| Pretravel | Not Applicable |
| Roller Diameter | Not Applicable |
| Action | Momentary |
| Operating Force - Minimum | Not Applicable |
| Roller Adjustability | Fixed |
| Total Travel | 1 in |
| Lamp Type | Not Applicable |
| Reset Travel | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Operating Force - Maximum | 48 ozf |
| Number of Mounting Holes | 2 |
| Operating Temperature - Minimum | -40 deg F |
| Includes Actuator | Actuator Included |
| Roller Position | Top |
| Boot Sealed Actuator | No Boot Included |
| Body Configuration | Not Applicable |
| Body Width | 1-3/4 in |
| Operating Temperature - Maximum | 185 deg F |
| Overtravel | Not Applicable |
| Operating Torque - Maximum | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Package Quantity | 1 |
