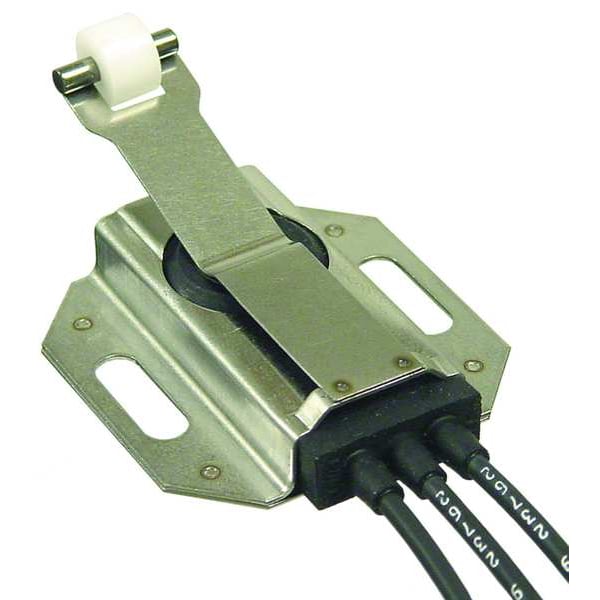

Interruptor de límite a prueba de agua, palanca, rodillo, SPDT, 5A @ 120V AC, Ubicación del actuador: Arriba
| Item | Water Proof Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Lever |
| Actuator Style - Limit Switch | Lever, Roller |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 120 V |
| DC Contact Rating - Limit Switch | 5 A @ 28 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Flange |
| Body Style (Limit Switch) | Miniature |
| Actuator Style | Special |
| Body Material | Stainless Steel and TPR |
| Body Depth - Limit Switch | 0.97 in |
| Body Height - Limit Switch | 1.53 in |
| Body Width - Limit Switch | 1-3/4 in |
| Depth | 1-3/4 in |
| Number of Poles | 1 |
| Mounting Hole Spacing - Limit Switch | 1.34 in |
| Operating Temp. Range | -40 to 185 deg F |
| Height | 1.01 in |
| AC Contact Rating | 5 A @ 120 V |
| Travel | 0.36 in Nominal |
| NEMA Rating | No Nema Rating |
| Stem Thread - Limit Switch | No Stem |
| Voltage Rating | 120VAC/28VDC |
| Basic Actuator Style (Limit Switch) | Lever |
| Arm Width | 0.6 in |
| Boot Sealed Actuator - Limit Switch | No |
| Series | E1 |
| Arm Material | Stainless Steel |
| Actuator Length - Limit Switch | 0.56 in |
| Wiring Entry | Not Applicable |
| Roller Dia. | 0.38 in |
| Actuator Location (Limit Switch) | Top |
| Limit Switch Style | Water Proof Limit Switch |
| DC Contact Rating | 5 A @ 28 V |
| Roller Width | 1/4 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Contact Form - Limit Switch | SPDT |
| Roller Material | Nylon |
| IP Rating | 68 |
| Actuator Location | Top |
| Mounting Hole - Limit Switch | (2) 0.20 in x 0.62 in Slot |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Movement | One Way Vertical and Direction Horizontal |
| Amps | 5 |
| Contact Form | SPDT |
| Width | 1-3/4 in |
| Actuator Length | 0.56 in |
| Actuator Style (Limit Switch) | Roller, Lever |
| Electrical Connection | Flying Leads |
| Differential Travel | Not Applicable |
| Arm Depth | 0.87 in |
| Operating Temperature - Maximum | 185 deg F |
| Number of Mounting Holes | 2 |
| Mounting Style | Flange |
| Plunger Adjustability | Not Applicable |
| Overtravel | Not Applicable |
| Directional Movement | Linear |
| NEMA Enclosure Rating | No Enclosure |
| Operating Force - Minimum | Not Applicable |
| Body Configuration | Not Applicable |
| Total Travel | 0.52 in |
| Roller Adjustability | Fixed |
| Boot Sealed Actuator | No Boot Included |
| Arm Adjustability | Fixed |
| Body Width | 1-3/4 in |
| Mounting Hole Horizontal Center to Center Distance | 34 mm |
| Roller Diameter | 0.38 in |
| Overall Width | 1-3/4 in |
| Hazardous Location Specification | Not Rated |
| Operating Torque - Minimum | Not Applicable |
| Action | Momentary |
| Includes Actuator | Actuator Included |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Diameter | 0.2 in |
| Operating Force - Maximum | 48 ozf |
| Lamp Type | Not Applicable |
| Operating Torque - Maximum | Not Applicable |
| Pretravel | Not Applicable |
| Overall Depth | 1-3/4 in |
| Body Height | 1.53 in |
| Arm Length - Minimum | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 41 mm |
| Arm Length - Maximum | 1.36 in |
| Operating Temperature - Minimum | -40 deg F |
| Reset Travel | Not Applicable |
| Body Depth | 1-3/4 in |
| Roller Position | Top |
| Package Quantity | 1 |
