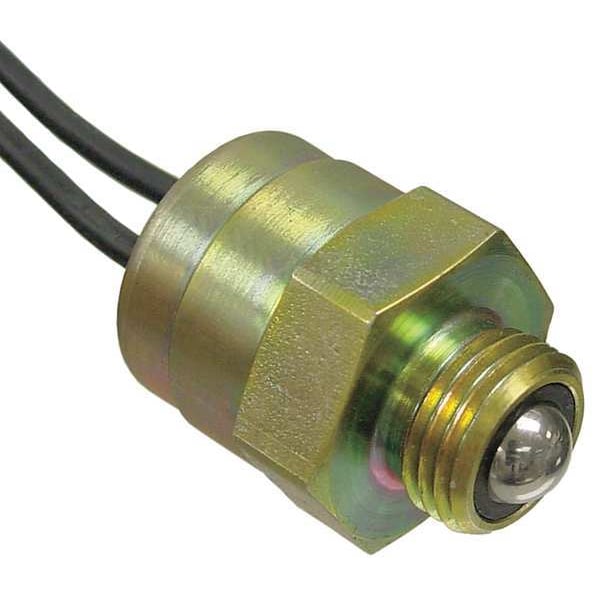

Interruptor de límite a prueba de agua, vástago, rodillo, 1NA, no clasificado para corriente alterna, ubicación del actuador: top.
| Item | Water Proof Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | Not Rated |
| DC Contact Rating - Limit Switch | 5 A @ 28 V |
| Body Style - Limit Switch | Micro |
| Mounting - Limit Switch | Stem |
| Voltage Rating | 28VDC |
| Stem Thread - Limit Switch | 9/16-18 UNF x 0.31 in |
| Operating Temp. Range | -40 to 185 deg F |
| Actuator Location (Limit Switch) | Top |
| Boot Sealed Actuator - Limit Switch | No |
| Body Material | Zinc Plated 12L14 Steel |
| Body Width - Limit Switch | 0.87 in |
| Roller Dia. | 0.31 in |
| DC Contact Rating | 5 A @ 28 V |
| Actuator Length | 0.12 in |
| Wiring Entry | Not Applicable |
| Mounting Hole Spacing - Limit Switch | No Holes |
| Actuator Location | Top |
| Mounting Hole - Limit Switch | No Holes |
| Roller Width | 0.31 in |
| Threaded for Panel Mounting (Limit Switch) | Yes |
| Body Style (Limit Switch) | Micro |
| Movement | Omnidirectional |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Mounting Hole Pattern - Limit Switch | No Holes |
| NEMA Rating | No Nema Rating |
| Contact Form - Limit Switch | 1NO |
| Arm Material | Stainless Steel |
| Width | 1 in |
| IP Rating | 68 |
| Contact Form | 1NO |
| Series | J4 |
| Travel | 0.10 in Nominal |
| Body Height - Limit Switch | 0.89 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| AC Contact Rating | Not Rated |
| Limit Switch Style | Water Proof Limit Switch |
| Actuator Style | Plunger |
| Roller Material | Stainless Steel |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Depth - Limit Switch | 0.87 in |
| Amps | 5 |
| Height | 1.29 in |
| Electrical Connection | Flying Leads |
| Depth | 1.01 in |
| Actuator Length - Limit Switch | 0.12 in |
| Arm Width | Not Applicable |
| Differential Travel | Not Applicable |
| Arm Depth | Not Applicable |
| Pretravel | 0.32 in |
| Mounting Style | Stem |
| Directional Movement | Omnidirectional |
| Body Depth | 0.87 in |
| NEMA Enclosure Rating | No Enclosure |
| Roller Position | Top |
| Body Height | 0.89 in |
| Hazardous Location Specification | Not Rated |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Body Configuration | Not Applicable |
| Mounting Hole Diameter | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Arm Length - Maximum | Not Applicable |
| Includes Actuator | Actuator Included |
| Total Travel | 0.104 in to 0.115 in |
| Number of Mounting Holes | 0 |
| Operating Force - Maximum | 48 ozf |
| Lamp Type | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Action | Momentary |
| Roller Diameter | 0.31 in |
| Body Width | 0.87 in |
| Operating Torque - Minimum | Not Applicable |
| Plunger Adjustability | Fixed |
| Reset Travel | Not Applicable |
| Operating Temperature - Maximum | 257 deg F |
| Operating Temperature - Minimum | -40 deg F |
| Overtravel | Not Applicable |
| Roller Adjustability | Fixed |
| Operating Torque - Maximum | Not Applicable |
| Package Quantity | 1 |
