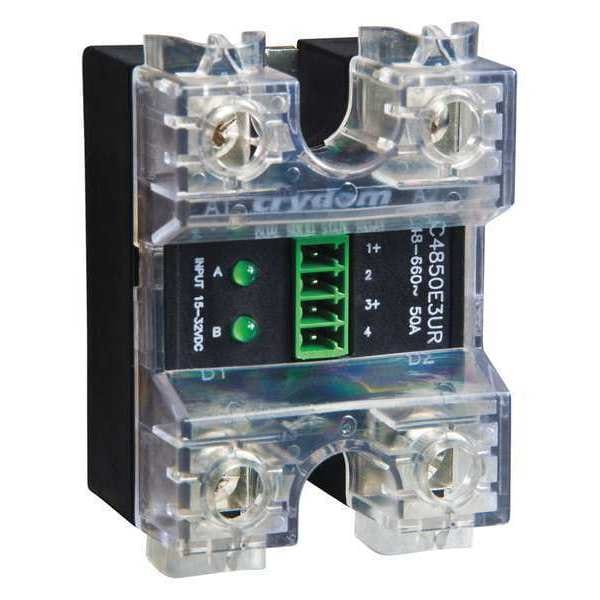

Relevador de estado sólido dual, 4 a 32VDC, 50A.
| Item - Relay | Dual Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 48 to 600 V AC |
| Max. Output Amps w/Heat Sink | 50 A |
| Heat Sink | Not Included |
| Switch Type | SCR |
| Contact Form - Relay | SPST-NO |
| Relay Turns On At | Zero Crossing |
| Input Power Consumption (Burden) | 0.1 W |
| Mounting - Relay | Surface |
| Input Voltage | 4 to 32V DC |
| Voltage Output | 48 to 600 VAC |
| Item | Dual Solid State Relay |
| Case Color | Black |
| Turns On At | Zero Cross |
| Standards | UL 508 |
| Mounting | Surface |
| Includes | Cover |
| Max. Output w/Heat Sink | 50 A |
| Phase | 2 |
| Body Depth - Relay | 1.8 in |
| Max. Output Amps Without Heat Sink | Not Recommended |
| Overall Height - Relay | 1.43 in |
| Finger Safe | Yes |
| Body Width - Relay | 2.64 in |
| Input or Control Voltage Range | 4 to 32 VDC |
| Body Height - Relay | 1.06 in |
| Power Factor | 0.5 |
| Response Time | 0.5 msec |
| Current Type | AC |
| Maximum Output Current with Heat Sink | 50 A |
| Body Depth | 0.8 in |
| Minimum Operating Temperature | -40 deg F |
| Output Voltage Range | 48 to 600 V AC |
| Maximum Output Current without Heat Sink | Not Recommended |
| Overall Depth | 1.43 in |
| Body Height | 0.79 in |
| Switch Configuration | Form A |
| Maximum Capacitance | 10 pF |
| Series | Evolution Dual Series |
| Input Current | 10 mA |
| IP Rating | IP20 |
| Weight | 3 oz |
| Switch Component Type | SCR |
| Maximum Operating Temperature | 176 deg F |
| Voltage Type | AC Output |
| Insulation Resistance | 1,000 megaohm |
| Drop Out Voltage | 1.3 V DC |
| Electrical Connection | Screw Clamp |
| Mounting Style | Panel |
| Dielectric Strength | 4,000V AC |
| Body Width | 2.3 in |
| Status Indicator | LED Indicator |
| Frequency | 50/60 Hz |
| Output Switching Mode | Zero Crossing |
| Package Quantity | 1 |
