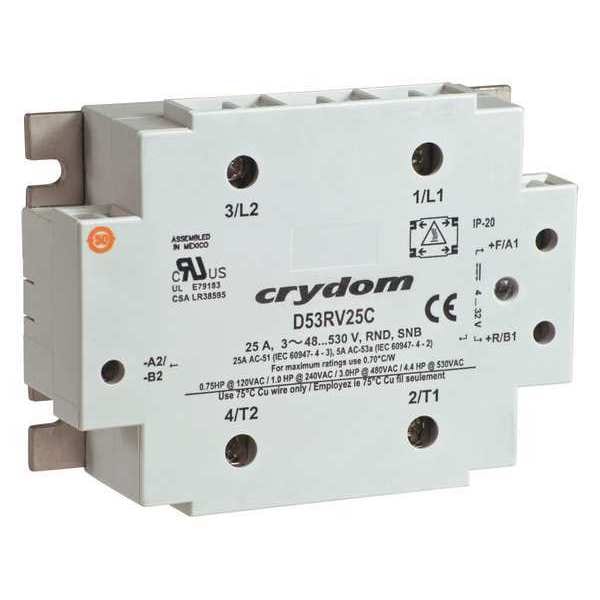

Relé de estado sólido inversor, 4-32VDC, 50A.
| Item - Relay | Reversing Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 48 to 530 V AC |
| Max. Output Amps w/Heat Sink | 50 A |
| Heat Sink | Not Included |
| Switch Type | SCR |
| Contact Form - Relay | SPST-NO |
| Relay Turns On At | Instantaneous, Random |
| Input Power Consumption (Burden) | 0.3 W |
| Mounting - Relay | Surface |
| Input Voltage | 4 to 32V DC |
| Voltage Output | 48 to 530 VAC |
| Item | Reversing Solid State Relay |
| Body Depth - Relay | 3.14 in |
| Max. Output w/Heat Sink | 50 A |
| Overall Height - Relay | 1.39 in |
| Max. Output Amps Without Heat Sink | Not Recommended |
| Turns On At | Instantaneous |
| Body Width - Relay | 3.99 in |
| Phase | 3 |
| Standards | CE Certified, cURus E116950, IEC 62314, RoHS Compliant |
| Mounting | Surface |
| Body Height - Relay | 1.39 in |
| Case Color | Gray |
| Input or Control Voltage Range | 4 to 32 VDC |
| Finger Safe | Yes |
| Includes | Cover |
| Horsepower @ 240V AC | 3 HP |
| Electrical Phase | Three |
| Minimum Operating Temperature | -40 deg F |
| Weight | 13.1 oz |
| Output Switching Mode | Instantaneous, Random |
| Maximum Capacitance | 8 pF |
| Mounting Style | Panel |
| Voltage Type | AC Output |
| Electrical Connection | Screw Clamp |
| Series | 53RV Series |
| Body Width | 4.09 in |
| Maximum Operating Temperature | 176 deg F |
| Maximum Output Current without Heat Sink | Not Recommended |
| Body Height | 3.14 in |
| Drop Out Voltage | 1 V DC |
| Maximum Output Current with Heat Sink | 50 A |
| Output Voltage Range | 48 to 530 V AC |
| Switch Component Type | SCR |
| Switch Configuration | Form A |
| Body Depth | 3.14 in |
| Input Current | 35 mA |
| Current Type | DC |
| Status Indicator | LED Indicator |
| IP Rating | IP20 |
| Overall Depth | 1.4 in |
| Package Quantity | 1 |
