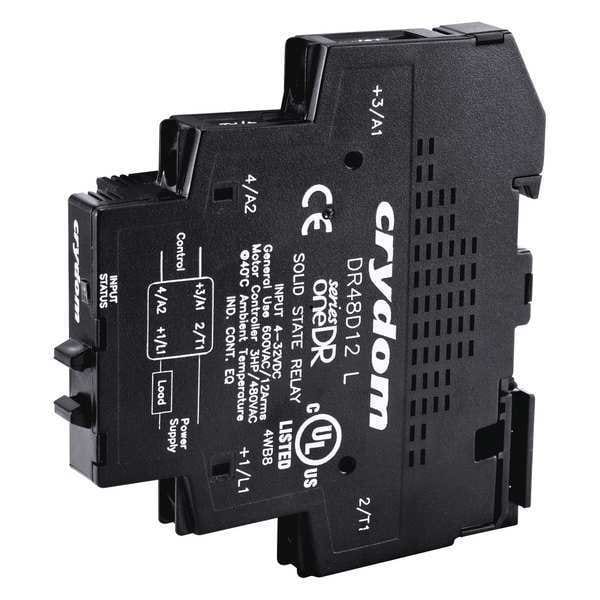

Relé de estado sólido, 4 a 32VDC, 12A
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 2 to 60 V DC |
| Max. Output Amps w/Heat Sink | 12 A |
| Heat Sink | Integral |
| Switch Type | MOSFET |
| Contact Form - Relay | SPST-NO |
| Input Power Consumption (Burden) | 0.1 W |
| Mounting - Relay | DIN Rail |
| Input Voltage | 4 to 32V DC |
| Voltage Output | 2 to 60VDC |
| Item | Solid State Relay |
| Input or Control Voltage Range | 4 to 32 VDC |
| Case Color | Black |
| Overall Height - Relay | 3.3 in |
| Mounting | DIN |
| Body Width - Relay | 3.45 in |
| Finger Safe | Yes |
| Max. Output w/Heat Sink | 12 A |
| Standards | CE Certified, RoHS Compliant, UL 508 Endurance Rating for Enhanced Reliability, UL and cUL Listed, UL Class I and II, Division 2, for Hazardous Locations |
| Max. Output Amps Without Heat Sink | 12 A |
| Body Height - Relay | 3.3 in |
| Body Depth - Relay | 0.72 in |
| Phase | 3 |
| Maximum Output Current with Heat Sink | 12 A |
| Voltage Type | DC Output |
| Overall Depth | 3.3 in |
| Body Height | 3.45 in |
| Minimum Operating Temperature | -22 deg F |
| Series | SeriesOne DR Series |
| Input Current | 11 mA |
| Insulation Resistance | 1,000 megaohm |
| NEC Hazardous Location Classification | Class II, Division 2 |
| Switch Component Type | FET |
| Maximum Switching Voltage | 60 V DC |
| Body Depth | 3.17 in |
| Dielectric Strength | 2,500V AC |
| Weight | 3.17 oz |
| Mounting Style | DIN Rail |
| Maximum Capacitance | 10 pF |
| Switch Configuration | Form A |
| Response Time | 0.6 msec |
| Output Voltage Range | 1 to 60 V DC |
| Electrical Connection | Screw Clamp |
| Status Indicator | LED Indicator |
| Maximum Operating Temperature | 176 deg F |
| Drop Out Voltage | 0.6 V DC |
| Body Width | 0.72 in |
| Maximum Output Current without Heat Sink | 12 A |
| Current Type | DC |
| Output Switching Mode | Not Applicable |
| Package Quantity | 1 |
