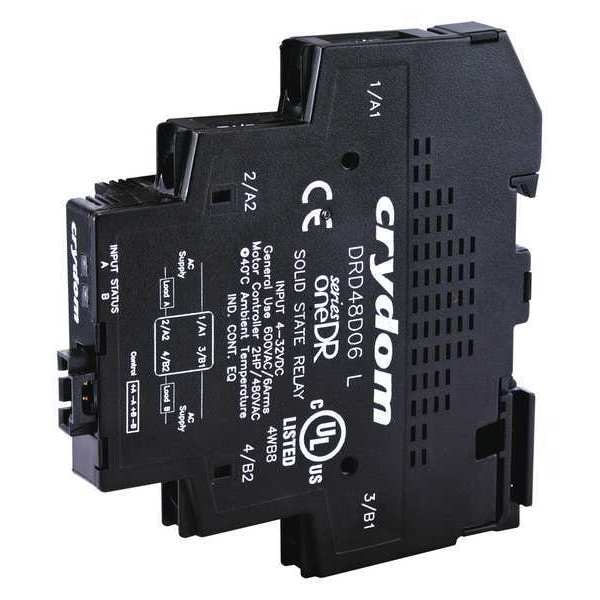

Relé de estado sólido, de 4 a 32VDC, 6A.
| Item - Relay | Dual Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 24 to 280 V AC |
| Max. Output Amps w/Heat Sink | 6 A |
| Heat Sink | Integral |
| Switch Type | SCR |
| Contact Form - Relay | SPST-NO |
| Relay Turns On At | Zero Crossing |
| Input Power Consumption (Burden) | 0.1 W |
| Mounting - Relay | DIN Rail |
| Input Voltage | 4 to 32V DC |
| Voltage Output | 24 to 280 VAC |
| Item | Dual Solid State Relay |
| Case Color | Black |
| Body Depth - Relay | 0.72 in |
| Max. Output Amps Without Heat Sink | 6 A |
| Standards | CE Certified, cUL Listed, RoHS Compliant, UL 508, UL Class I and II, Division 2, UL Listed |
| Mounting | DIN |
| Max. Output w/Heat Sink | 6 A |
| Phase | 2 |
| Turns On At | Zero Cross |
| Body Height - Relay | 3.31 in |
| Input or Control Voltage Range | 4 to 32 VDC |
| Body Width - Relay | 3.45 in |
| Overall Height - Relay | 3.32 in |
| Finger Safe | Yes |
| Weight | 3.17 oz |
| Drop Out Voltage | 1.3 V DC |
| Response Time | 0.5 msec |
| Mounting Style | DIN Rail |
| Body Width | 0.71 in |
| Power Factor | 0.5 |
| Dielectric Strength | 2,500V AC |
| Status Indicator | LED Indicator |
| Overall Depth | 3.32 in |
| Horsepower @ 240V AC | 0.5 HP |
| Switch Component Type | SCR |
| Current Type | DC |
| Electrical Connection | Screw Clamp |
| Insulation Resistance | 1,000 megaohm |
| Body Height | 3.45 in |
| Input Current | 11 mA |
| Minimum Operating Temperature | -22 deg F |
| Frequency | 50/60 Hz |
| Maximum Operating Temperature | 176 deg F |
| Switch Configuration | Form A |
| Body Depth | 3.32 in |
| Series | SeriesOne DR Dual Series |
| Voltage Type | AC Output |
| Output Voltage Range | 24 to 280 V AC |
| Maximum Output Current without Heat Sink | 6 A |
| Maximum Capacitance | 10 pF |
| Maximum Output Current with Heat Sink | 6 A |
| NEC Hazardous Location Classification | Class II, Division 2 |
| Output Switching Mode | Zero Crossing |
| Package Quantity | 1 |
