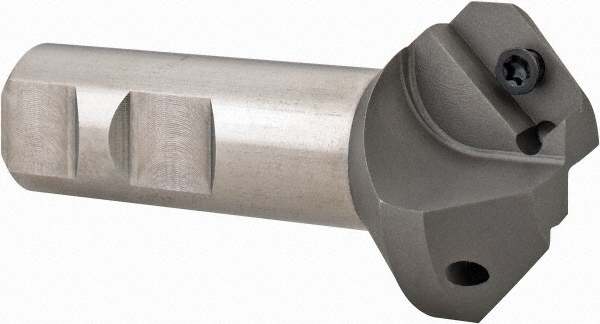

Takes 2 Inserts, SPEH 322 Insert Style, ANG Toolholder, 3" OAL, 0.27" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.9300 |
|---|---|
| Maximum Cutting Diameter (Inch) | 1-1/8 |
| Maximum Cutting Diameter (Decimal Inch) | 1.1250 |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Compatible Insert Size Code | SPEH‐322 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Insert Style | SPEH 322 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Height (Decimal Inch) | 0.7500 |
| Toolholder Style | ANG |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Milling |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.3750 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Axial Rake Angle (Degrees) | 11 |
| Shank Type | Weldon Flat |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 00329334 |
