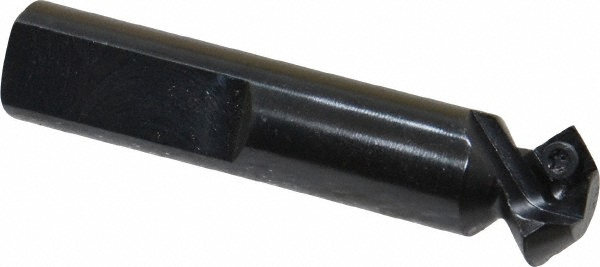

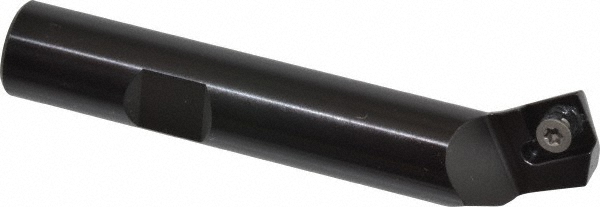

Takes 1 Insert, SDEB 21.51 Insert Style, ANG Toolholder, 2-1/2" OAL, 0.15" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.3400 |
|---|---|
| Maximum Cutting Diameter (Inch) | 5/8 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |

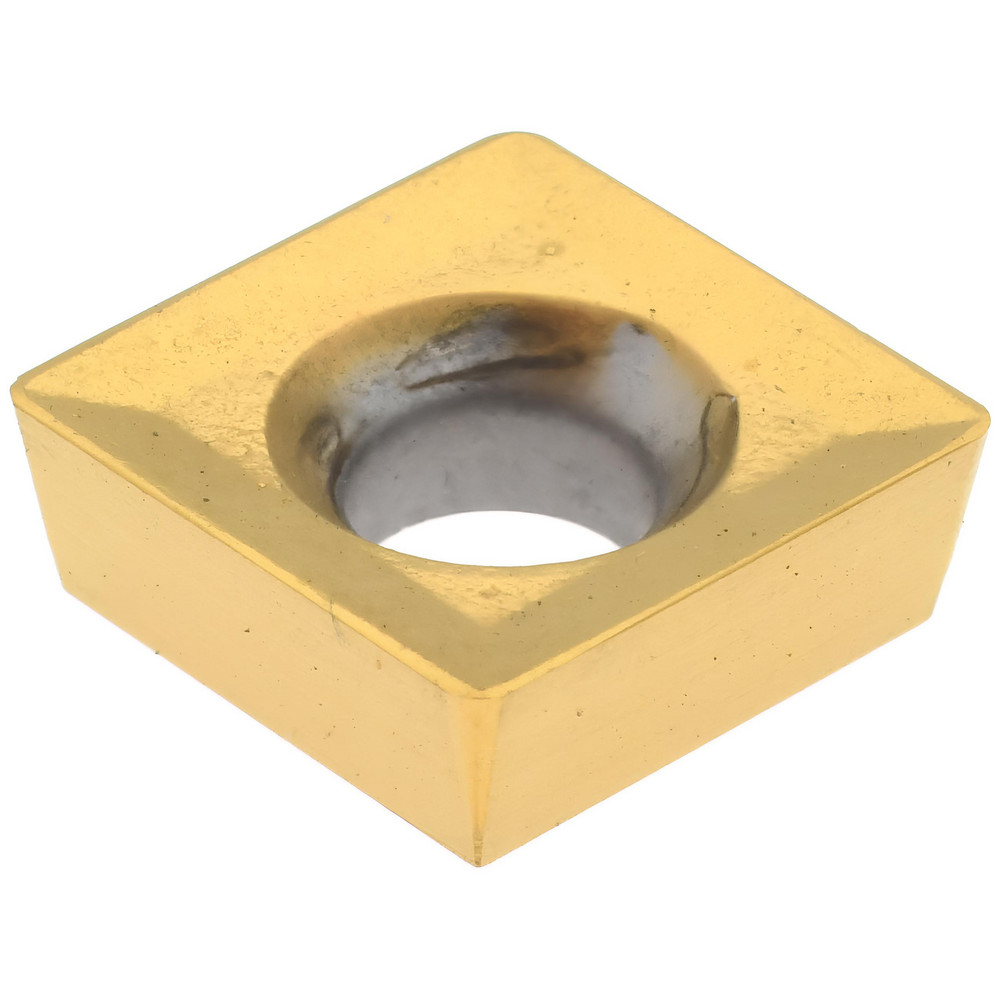

| Compatible Insert Size Code | SDEB‐21.51 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number Of Cutter Inserts | 1 |
| Insert Style | SDEB 21.51 |

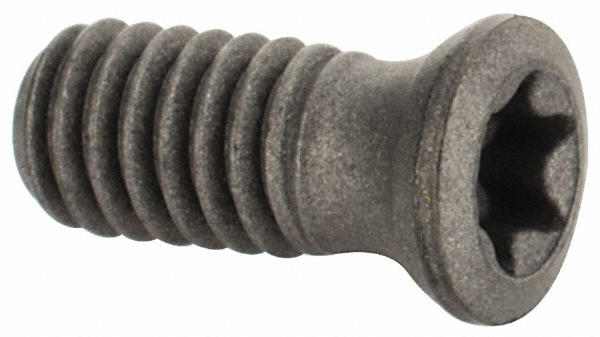

| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Height (Decimal Inch) | 0.4700 |
| Toolholder Style | ANG |
| Maximum Body Diameter (Decimal Inch) | 0.5000 |
| Tool Application | Milling |
| Head Length (Decimal Inch) | 0.4700 |
| Shank Length (Decimal Inch) | 2.1800 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Axial Rake Angle (Degrees) | 15 |
| Shank Type | Weldon Flat |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 73119554 |
