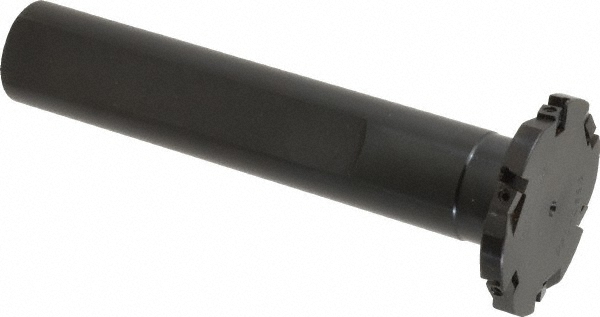

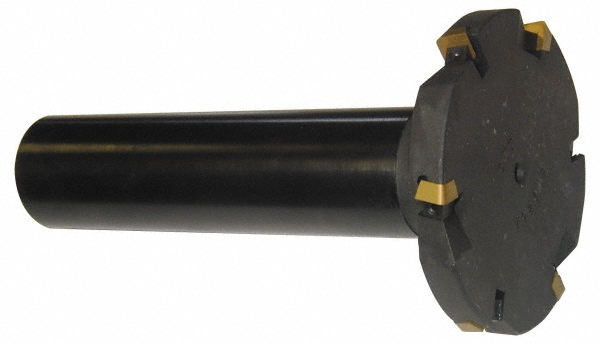

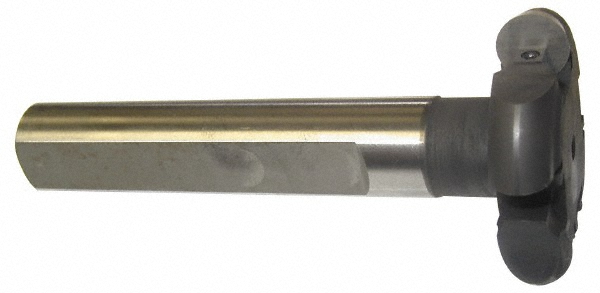

Clamp, Uses 4 Inserts, 1312 Inserts, 4 Tooth, Staggered Teeth, Steel

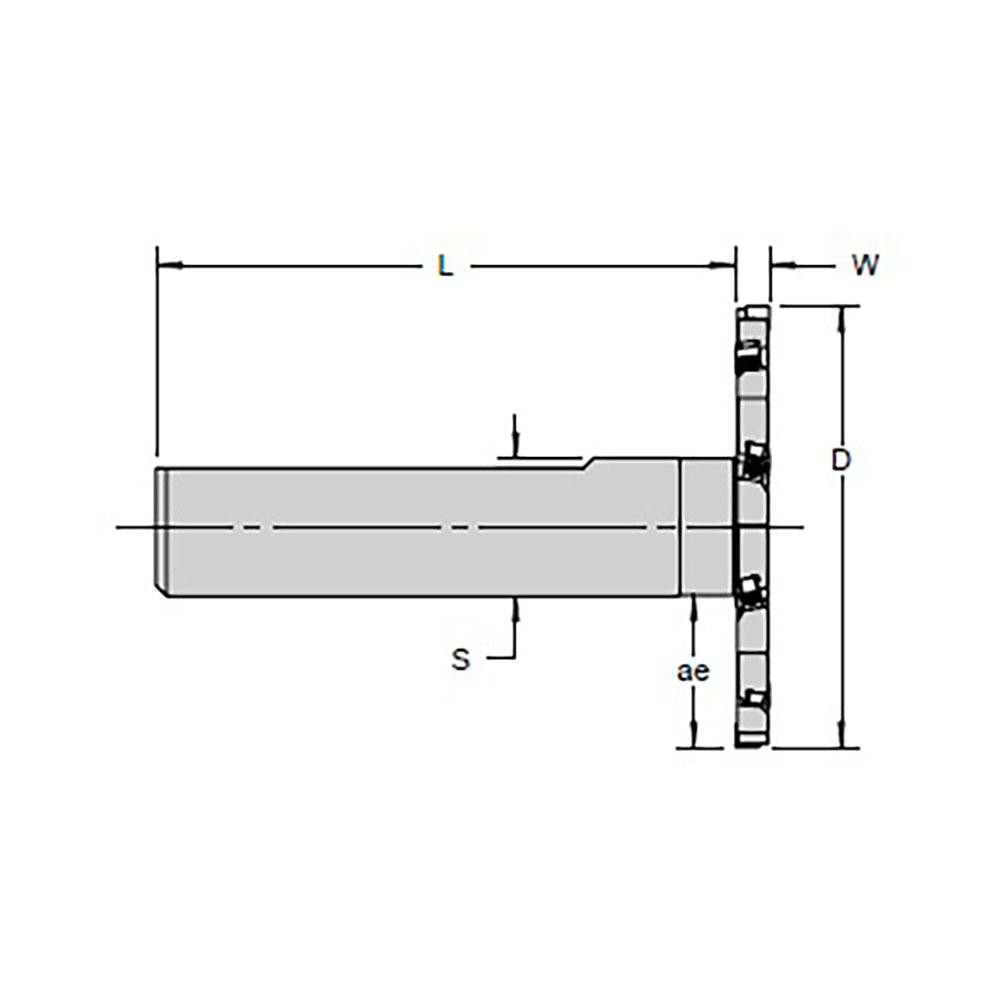

| Connection Type | Shank |
|---|---|
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.8700 |
| Hole Diameter (Inch) | 3 |
| Hole Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Shank Diameter (mm) | 1.25 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 5.7500 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 4 |

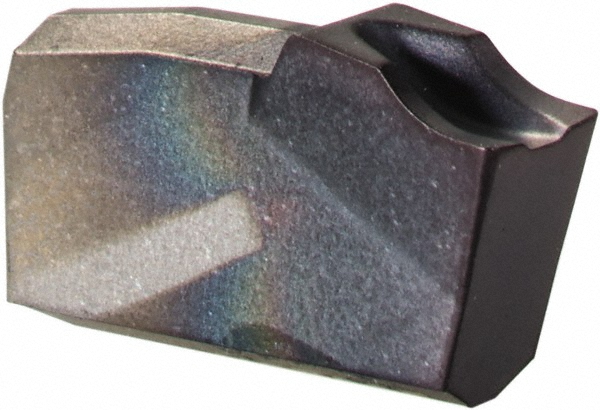

| Compatible Insert Style | 1312 |
| Compatible Insert Size Code | 015; 125; 060; 030 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | DSSC |
| Toolholder Style | DSSC |
| Cutting Radius (Fractional Inch) | 1-1/2 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Minimum Cutting Width (Inch) | 1/2 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23241629 |
| Weldon Flat | No |
| Manufacturers Catalog Number | DSSC-130 |
| Overall Height (Decimal Inch) | 6.2500 |
| Wedge Number | 6W006 |
| Insert Inscribed Circle (mm) | 0.31 |
| Insert Inscribed Circle (Inch) | 5/16 |
| Number Of Teeth | 4 |
| Coolant Through | No |
| Complete Insert Compatibility | 1312-015; 1312-125; 1312-030; 1312-060 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 86820990 |
