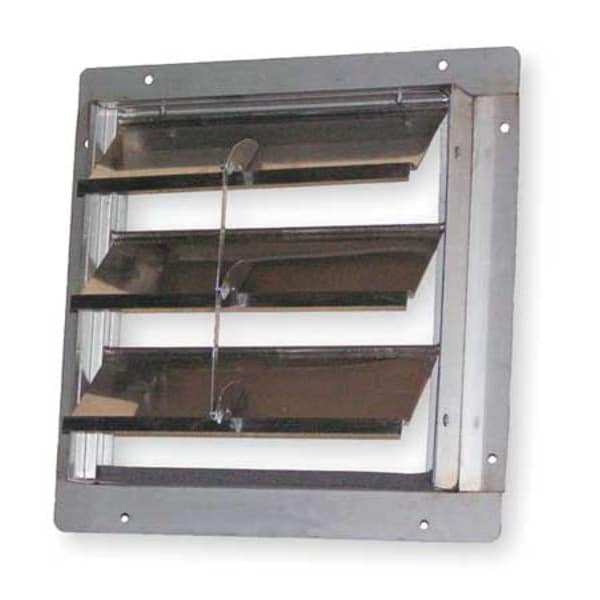

10 in 13"H-W 5 1/4"L SS Backdraft Dampr, 10-1/2 in x 10-1/2 in, Stainless Steel
| Item | 13"H-W 5 1/4"L SS Backdraft Dampr |
|---|---|
| Shutter Mounting Position | Vertical |
| Shutter Mounting Location | Wall |
| Shutter Construction Material | Stainless Steel Frame and Tie Rods |
| Shutter Free Area | 0.645 sq ft |
| Shutter Opening Required | 10-1/2 in x 10-1/2 in |
| Shutter Overall Size | 13 in x 13 in |
| Fits Fan Dia. | 10 in |
| Blade Material | Stainless Steel |
| Max. Velocity | 2500 FPM |
| Type | Gravity Operated, Single Panel |
| Shutter Item | Backdraft Damper / Wall Shutter |
| Shutter Overall Square | 13" x 13" |
| For Use With | Vertical Mounted Exhaust Fans |
| Frame Opening B | 10 in |
| Frame Depth | 2 in |
| Number of Panels | 1 |
| Frame Opening A | 10 in |
| Mounting Hole Size | Prepunched |
| Open Depth | 5-3/4 in |
| Flange Width | 1-1/2 in |
| Includes | Stainless Steel Frame; Louvers and Hardware For Superior Corrosion Resistance |
| Mounting Position | Vertical |
| Free Area | 0.5 sq ft |
| Fits Fan Diameter | 10 in |
| Closure Velocity Rating | 2,500 fpm |
| Rough Opening Diameter | 10-1/2 in |
| Overall Diameter | 13 in |
| Rough Opening Length | 10-1/2 in |
| Damper Type | Static |
| Rough Opening Width | 10-1/2 in |
| Flange Type | Rear Flange |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| For Fuel Type | Not Applicable |
| Overall Length | 5-1/4 in |
| Bushing Material | Stainless Steel |
| Frame Material Thickness | 0 in |
| Maximum Ambient Temperature | 180 Degrees F |
| Closure Type | Gravity |
| Fusible Link Temperature | Not Applicable |
| Tie-Rod Material | Tie Rods, Stainless Steel Frame |
| Switch Action | Normally Closed |
| Single Acting/Double Acting | Single Acting |
| ACMA Leakage Class | Not Applicable |
| Connection Type | Not Applicable |
| Blade Material Thickness | 0 ga |
| Blade Orientation | Parallel Blades |
| Maximum Pressure | 1 in wc |
| Maximum Air Velocity | 2,500 fpm |
| For Duct Shape | Not Applicable |
| For Nominal Duct Diameter | Not Applicable |
| Damper Application | Backdraft |
| Overall Height | 13 in |
| Frame Material | Stainless Steel |
| Blade Seal Material | Felt |
| Overall Width | 13 in |
| Airflow Direction | Horizontal |
| Blade Type | Flat Blade |
| Rough Opening Shape | Square |
| Frame Opening Width | 10 in |
| Seal Material | Not Applicable |
| Frame Less Flange | 10 |
| Counterbalanced | No |
| Frame Opening Height | 10 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
