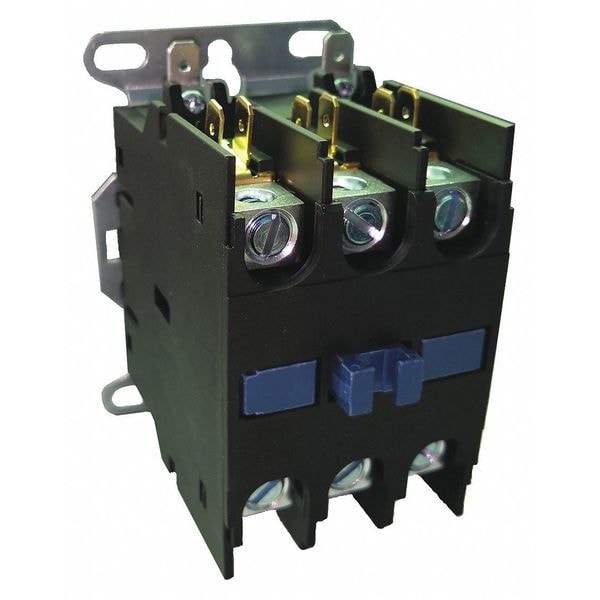

Contacto de propósito definido de 120VAC no reversibles de 3 polos 25A.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 35 A |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 3 Phase - 230V | 3 |
| Height | 3.07 in |
| HP @ 1 Phase - 240V | 2 hp |
| Width | 2.4 in |
| HP @ 3 Phase - 208V | 3 HP |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 3.65 in |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 480V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | GB14048.4, IEC60947-4-1, UL508 |
| Enclosure Type | Open |
| Hz | 50/60 |
| Series | Standard |
| Shop By | Closeouts |
| Package Quantity | 1 |
