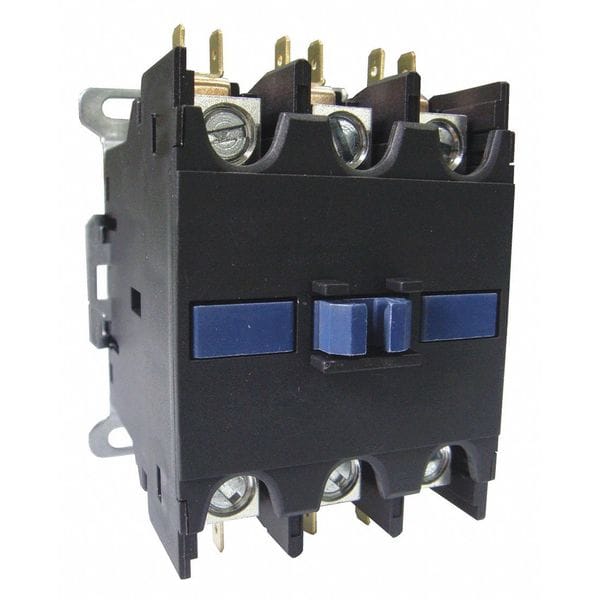

Contactador de propósito definido de 3 polos y 50A no reversible de 120VCA.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 50 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 63 A |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 3 Phase - 230V | 15 |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 3.27 in |
| Width | 2.87 in |
| HP @ 3 Phase - 208V | 15 HP |
| HP @ 3 Phase - 240V | 15 hp |
| Depth | 4.06 in |
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | GB14048.4, IEC60947-4-1, UL508 |
| Enclosure Type | Open |
| Hz | 50/60 |
| Series | Standard |
| Shop By | Closeouts |
| Package Quantity | 1 |
