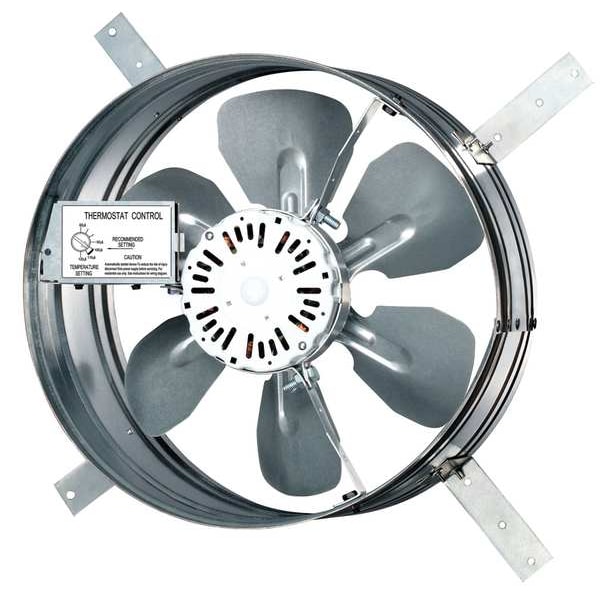

1220 CFM Gable Mount Attic Fan, 120V
| Voltage | 120 VAC |
|---|---|
| Control Method - Roof Ventilators | Automatic |
| Max. Attic Area (Sq.-Ft.) | 1,630 sq ft |
| Item - Roof Ventilators | Attic Ventilator |
| Hz | 60 |
| HP | 1/15 HP |
| Amps | 3.1 |
| Watts | 210 |
| RPM | 1,050 |
| CFM @ 0.000-In. SP | 1,220 |
| Free Air Intake Required (Sq.-Ft.) | 4 sq ft |
| Dome Dia. (In.) | 15-1/4 |
| Dome Material | Galvanized Steel |
| Thermostat Temp. (Deg. F) | 60 to 120 |
| Item | Attic Exhaust Fan |
| Power Method - Roof Ventilators | 120V |
| Type | Thermostatically Controlled Gable Mount |
| Mounting Location - Roof Ventilators | Gable |
| Includes | Metal Housing, Mounting Brackets, Thermostat |
| Included with Ventilator | Thermostat |
| Rough Opening Shape | Round |
| Maximum Motor Speed | 1,050 rpm |
| Maximum Fan Speed | 1,050 rpm |
| Overall Length | 15 in |
| Rough Opening Width | Not Applicable |
| Includes Motor | Yes |
| Current | 3.1 A |
| Airflow @ 0.000 in SP | 1,220 cfm |
| High-Efficiency Motor | No |
| Rough Opening Length | Not Applicable |
| Includes Shutter | No |
| For High-Static Pressure Applications | No |
| Power Source | Electric Motor |
| Wattage | 210 W |
| Control Type | Thermostat |
| Overall Diameter | 15 in |
| Dome Width | Not Applicable |
| Overall Height | 8 in |
| Motor Horsepower | 0.0625 HP |
| Blade Material | Steel |
| Dome Diameter | Not Applicable |
| Overall Width | 15 in |
| Maximum Attic Area | 1,630 sq ft |
| Nameplate Voltage | 120V AC |
| Thermostat Temperature Range | 60 to 120 deg F |
| Exhaust Airflow @ 0.000 in SP | 1,140 cfm |
| Housing Material | Steel |
| Rough Opening Diameter | 15-1/4 in |
| Fire Safety Shut-Off | No |
| Dome Shape | Not Applicable |
| Frequency | 60 Hz |
| Includes Thermostat | Yes |
| Includes Humidistat | No |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
